Quick answer: In an undercounter vs modular ice machine comparison, use an undercounter model when you need built-in storage and point-of-use access in one compact cabinet. Use a modular machine when you need greater output potential, separately sized storage, or an ice-making head mounted on a dispenser. Base the decision on peak demand, rush-period storage, installed space, workflow, utilities, and service access.
The undercounter vs modular ice machine decision is about equipment format, not ice shape or condenser type. Either format may produce cube, nugget, flake, or another specified ice style. The main differences are output range, storage configuration, installed size, and where employees access the ice.

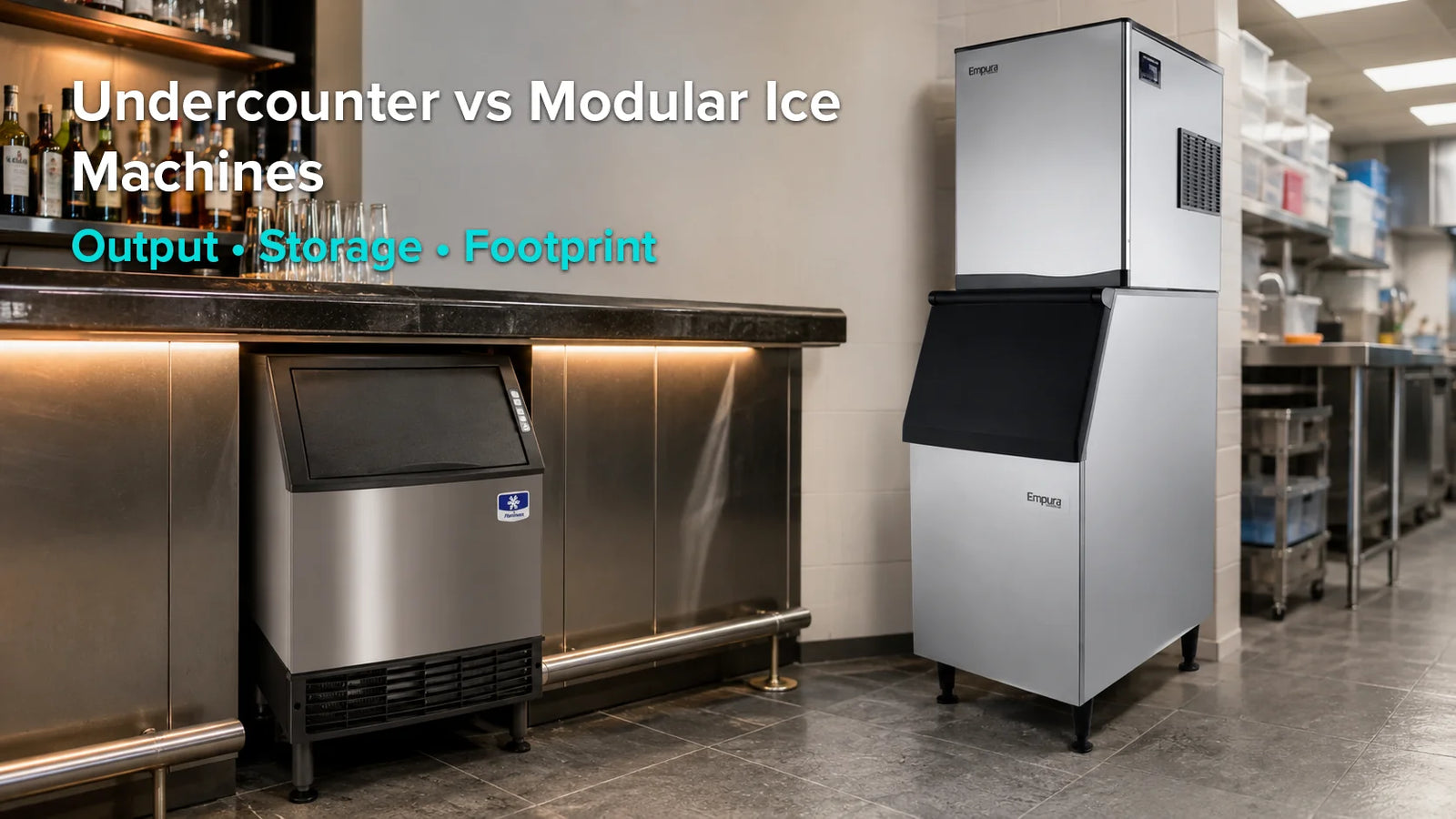

Undercounter vs modular ice machines head-to-head
An undercounter machine combines the ice maker and storage bin in one cabinet. A modular machine is a separate ice-making head installed on a compatible bin or dispenser. The modular head produces ice but does not store it by itself.
| Factor | Undercounter ice machine | Modular ice machine |
|---|---|---|
| Configuration | Ice maker and built-in storage in one cabinet | Separate ice-making head mounted on a compatible bin or dispenser |
| Output | Varies by model; generally has a lower maximum capacity than modular systems | Offers a broader capacity range, including high-output systems |
| Storage | Fixed built-in bin | Bin or dispenser selected separately |
| Footprint and height | Compact complete cabinet that is usually shorter | Requires space for the head and separate storage equipment; often taller when assembled |
| Ice access | Places ice near a bar, counter, or workstation | Commonly supports centralized production or dispenser-fed service |
| Equipment compatibility | Production and storage are integrated | Head, bin or dispenser, and adapter must be compatible |
| Installation planning | All-in-one format simplifies equipment selection | Complete system dimensions, utilities, and components must be planned together |
| Expansion flexibility | Limited by the unit’s built-in production and storage | Greater flexibility to change production or storage capacity |
| Best fit | Compact, distributed, or point-of-use ice needs | Centralized, high-volume, or customizable ice systems |
How do output, storage, and footprint affect your ice machine choice?
Output determines whether the machine can cover peak demand. Storage determines how much ice is available during concentrated service periods. Footprint determines whether the complete setup fits while remaining accessible for daily use, cleaning, and service.
Output - modular systems offer more room to scale
Modular product lines generally offer a broader range of production capacities and more high-output options. That doesn’t mean every undercounter ice machine is limited to light use. Output varies widely, and some commercial undercounter models can support substantial daily demand.
Size either format around peak use, not only an average day. Published production may also fall when ambient-air or incoming-water temperatures rise.
Estimate peak demand, include a reasonable growth buffer, compare production under realistic conditions, and confirm that storage covers the busiest service period.
Our commercial ice machine sizing guide explains how to match daily production with bin capacity.
Storage - undercounter is simpler, modular is more flexible
An undercounter machine includes a fixed built-in bin. This makes equipment selection simpler, but storage capacity cannot be increased independently from the machine.
A modular head requires a compatible commercial ice storage bin or dispenser. This adds another purchasing decision, but it allows production and storage to be sized separately.
Daily production and bin capacity are different specifications. A machine may produce enough ice over 24 hours but still run out during a lunch, dinner, banquet, or beverage rush if the bin is too small. The reverse is also true: a larger bin cannot compensate for a machine that produces too little ice.
Footprint - compare the complete installed system
Undercounter machines combine production and storage in one cabinet. They are useful where vertical space is limited, or ice must remain close to a bar, café counter, prep station, or service area.
Modular systems may occupy a similar amount of floor space, but the assembled head-and-bin combination is often taller. The setup also needs room for bin access, safe scooping, ventilation, cleaning, and equipment service.
Measure:
- Cabinet width, depth, and installed height
- Counter and overhead clearance
- Air intake and exhaust clearance
- Bin door or scoop access
- Water, drain, and electrical locations
- Service clearance
- The delivery path through doors and hallways
The term “undercounter” doesn’t guarantee that every model fits every counter opening. Always verify the exact product dimensions and clearance requirements.
Which ice machine setup fits your operation?
The undercounter vs modular ice machine choice becomes clearer when capacity, storage, space, and employee workflow are evaluated together.
Use an undercounter ice machine when
An undercounter model is usually the better fit when:
- Ice is needed close to the point of service.
- Built-in storage can cover peak periods.
- Vertical space is limited.
- The operation prefers one integrated cabinet.
- A separate storage bin would disrupt the workspace.
- Multiple departments need nearby ice access.
Bars, cafés, smaller beverage stations, offices, prep areas, and secondary service points often benefit from an integrated unit. The best commercial undercounter ice makers vary by ice type, production, storage, width, drainage, and installation requirements.
Use a modular ice machine when
A modular system is usually the stronger fit when:
- Daily demand is high or expected to grow.
- A larger storage bin is required.
- Ice production can be centralized.
- The machine must mount on a dispenser.
- Production and storage need to be sized independently.
- Future equipment flexibility matters.
Modular ice machines allow the machine head and storage equipment to be selected separately. Buyers must evaluate and price the complete system, not only the ice-making head.
One modular machine or multiple undercounter units?
One modular system usually provides more centralized production and storage. Keeping the equipment in one location may also simplify utility planning, filtration, cleaning schedules, and service.
Multiple undercounter machines place ice closer to separate work areas and reduce employee travel. They may also provide partial redundancy because one unit can continue supplying ice if another is out of service.
The catch is that every additional machine may require its own water, drain, electrical connection, filter, cleaning schedule, and service access. Compare total installed cost, operating workflow, maintenance workload, and the effect of equipment downtime.
What should you confirm before ordering?
Before purchasing either format, verify:
- Peak daily demand and rush-period storage
- Required ice type
- Complete installed dimensions
- Bin, dispenser, and adapter compatibility
- Water, drainage, and electrical requirements
- Condenser type and ventilation
- Filtration and incoming water conditions
- Cleaning and service access
The commercial ice machine guide covers these buying factors in more detail. Filtration must match the machine’s required flow and local water conditions, but it doesn’t replace cleaning or sanitizing. Review the commercial ice machine water filtration and cleaning guide before finalizing the installation.
Undercounter vs modular ice machine FAQs
What is an undercounter ice maker?
An undercounter ice maker combines ice production and built-in storage in one cabinet. It is designed for compact or point-of-use installation, but dimensions, output, storage, drainage, and ventilation requirements vary by model.
What is a modular ice machine?
A modular ice machine is an ice-making head mounted on a compatible storage bin or dispenser. It has no built-in storage, so production and storage can be sized separately.
What size is an undercounter ice machine?
There is no standard undercounter ice machine size. Check the exact model’s width, depth, height, ventilation, drainage, door access, and service-clearance requirements before ordering.
Where are modular ice machines commonly used?
Modular ice machines are commonly used in restaurants, hotels, hospitals, cafeterias, supermarkets, institutions, and high-volume beverage operations that need centralized production or separately sized storage.
Is there an ice machine that makes different types of ice?
Most commercial ice machines produce one specified ice type. Operations that need multiple ice styles generally require separate machines, although manufacturers may offer the same equipment family in different ice configurations.
Build the right ice production setup
Use an undercounter machine when compact placement, built-in storage, and point-of-use access matter most. Use a modular system when greater production potential, larger storage, or configuration flexibility is the priority. Exact output, bin compatibility, dimensions, utilities, workflow, and site conditions still determine which model is appropriate.
Explore commercial ice machines by equipment format, output, storage, ice type, and condenser configuration to build a system around your operation’s measured demand.
