Quick answer: A commercial ice maker installation is ready to proceed only after the exact model has been matched to the site. Confirm the installed dimensions, service access, electrical supply, potable-water connection, drainage, and condenser airflow against the current manufacturer documentation. A modular machine also needs a compatible bin or dispenser. A remote system adds an approved condenser, line set, mounting location, and qualified refrigeration work.

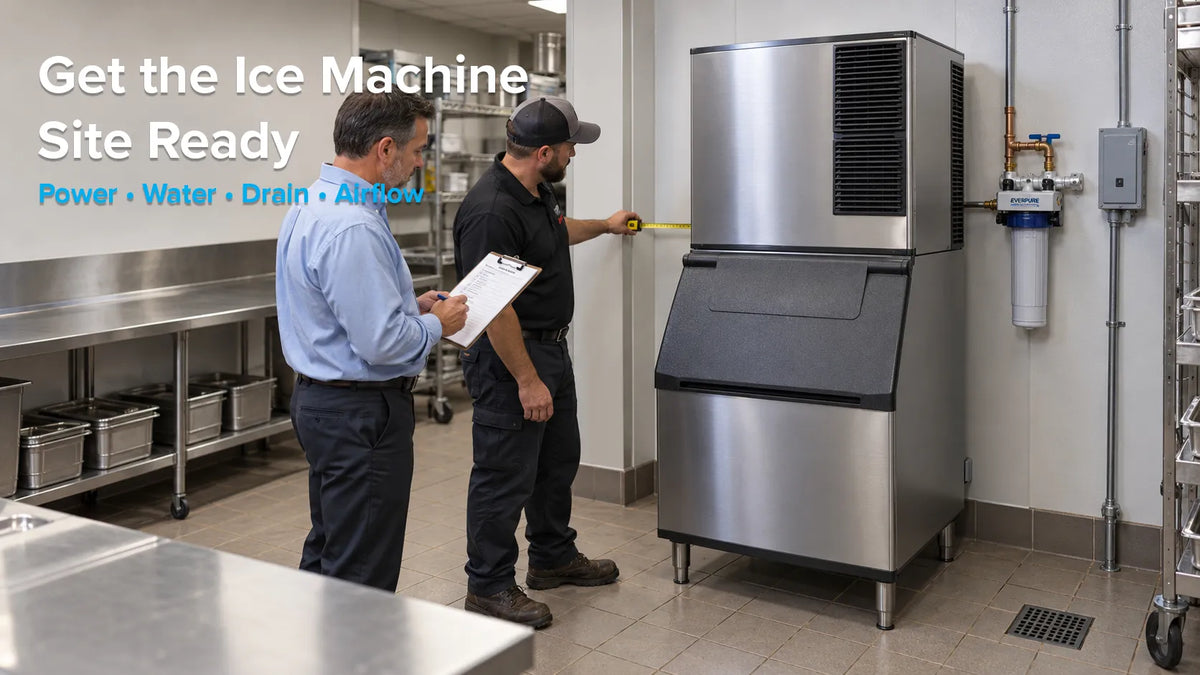

A successful commercial ice maker installation starts before the equipment ships. The site survey below helps buyers, facility managers, and installers document the delivery path, utilities, ventilation, and trade responsibilities before releasing an order for a commercial ice machine.
1. Start with the exact model and current manual
Commercial ice maker installation requirements are model-specific. Two machines with the same width and production rating can require different voltage, drainage, clearances, or condenser arrangements. The equipment nameplate and current manufacturer installation manual control the final requirements.
Record the complete model number, including the condenser suffix and electrical configuration. Then compare the model requirements with actual site conditions. If either side is incomplete, the commercial ice machine installation hasn’t been cleared.
For example, the current Manitowoc Indigo NXT installation, operation, and maintenance manual covers clearance, leveling, electrical service, water connections, drainage, and related equipment requirements.
| Site check | Model requirement | Site condition |
|---|---|---|
| Footprint | Width, depth, height, and panel swing | Finished opening and nearby equipment |
| Access | Panels and components requiring service | Working room around the installed unit |
| Electrical | Voltage, phase, frequency, circuit, and connection | Panel capacity and connection point |
| Water | Connection, pressure, and temperature range | Supply, shutoff, test results, and treatment |
| Drainage | Number, type, and routing requirements | Drain location, elevation, air gap, and route |
| Condenser | Air-cooled, water-cooled, or remote | Airflow, water service, or remote location |
| Storage | Approved bin or dispenser combinations | Installed height and ice-handling access |
The commercial ice machine buying guide covers capacity, ice type, machine format, and condenser selection. Use this commercial ice maker installation checklist after those decisions have narrowed the model list.
2. Measure the delivery path and final position
Product dimensions don’t describe the whole move. Trace the route from the unloading area to the final location, including doors, corridors, elevators, thresholds, ceiling height, and tight turns. Request packaged dimensions when any opening is close.
At the final position, separate three measurements:
- Installed footprint: The ice maker, bin or dispenser, legs, adapters, and top kit must fit as one assembly.
- Operating clearance: Air intakes, exhausts, doors, and controls need the space stated in the manual.
- Service clearance: A technician needs room to remove panels, clean components, and reach utilities safely.
Record all three on the site survey. An alcove can pass the footprint test and still fail the airflow or service test. Note nearby walls, shelves, heat sources, and appliances. A few measurements now can prevent a commercial ice maker installation from becoming a room redesign on delivery day.
3. Match the electrical supply to the nameplate
Voltage alone isn’t enough. For every commercial ice maker installation, record the voltage, phase, frequency, minimum circuit requirement, overcurrent protection, and connection method. Confirm if the model uses a plug and receptacle, a hardwired connection, or a local disconnect.
Have a qualified electrician compare the selected model with the building panel before delivery and document the approved plan. This catches three-phase equipment at a single-phase site, insufficient capacity, a misplaced receptacle, or a shared circuit.
Keep the disconnect accessible. The equipment’s operating switch may not satisfy electrical isolation requirements. The manual and applicable electrical code determine the final commercial ice machine installation arrangement.
4. Plan the water connection and treatment together
The water used to produce ice must come from a potable supply and remain within the model’s specified pressure and temperature ranges. Document the supply size, connection type, measured pressure, shutoff location, and incoming water conditions before specifying treatment.
Filtration should address the water test and manufacturer guidance. Sediment, chlorine-related taste or odor, and scale potential may require different treatment. Compare ice machine water filtration systems after confirming flow, capacity, pressure range, connection size, and treatment claims.
Place the shutoff and filter where a cartridge can be replaced without moving the machine. Record the filter head and cartridge numbers at commissioning. The commercial ice machine water-filtration guide separates filtration, cleaning, and descaling.
Treat the water supply, shutoff, and filter as one system. A properly sized cartridge can’t correct an undersized supply line or inaccessible valve. Have the plumber approve the water plan before equipment release.
5. Draw the drain route before ordering equipment
Many ice makers, bins, and dispensers use gravity drainage. The outlet elevation, continuous fall, destination, separation, venting, and air gap must comply with the model instructions and local plumbing requirements. Draw the complete commercial ice machine installation drain route.
Count every drain connection. The ice-making head, bin, and dispenser may have separate outlets, and the manual determines if their lines must remain separate. A commercial ice maker installation can fail even with a floor drain if the route rises, sags, terminates incorrectly, or allows discharged water to return toward the equipment.
Some undercounter units include a drain pump or accept an approved kit. Confirm that the machine accepts it and that the proposed lift, run, and discharge point meet its instructions. Review Hoshizaki drain pumps only after verifying the complete model.
The plumber should approve the commercial ice machine installation drain plan before equipment release, especially when an indirect waste connection, air gap, backflow protection, or new floor penetration is required.
6. Preserve airflow around an air-cooled machine
An air-cooled condenser pulls room air across the coil and returns heat to the space. Restricted airflow can reduce output and increase operating stress. Side, rear, and top clearances depend on the exact model.
Check the permitted ambient range at the hottest expected condition. A commercial ice maker installation beside cooking equipment faces more heat and airborne grease than the same model in a ventilated equipment room. Confirm that the room can remove the machine’s rejected heat without trapping it around the condenser.
Preserve open louvers, cleaning access, and the manufacturer’s airflow path. For an undercounter installation, confirm that the model is approved for that position and identify its intake and exhaust panels. The air-cooled and water-cooled ice machine comparison provides additional context.
7. Survey both locations for a remote system
A remote commercial ice maker installation has two sites: the indoor ice-making head and the remote condenser location. Confirm the approved condenser, line set or tubing, measured route, vertical rise or drop, mounting surface, electrical service, ambient limits, and service access.
Roof or exterior placement may require property approval, structural review, weatherproof mounting, and sealed penetrations. Stocked line-set lengths aren’t universal routing limits. The selected head, condenser, and manual determine allowable distance and elevation.
Manitowoc remote line sets, for example, are identified by length, refrigerant, and compatible equipment series. Brand or connection size alone doesn’t establish commercial ice machine installation compatibility.
Use a contractor qualified for the refrigeration scope and local requirements. EPA Section 608 guidance requires technician certification when installation work could reasonably violate the refrigerant circuit. A general equipment installer isn’t automatically qualified to complete every remote commercial ice maker installation.
8. Assign every task before delivery
Clear ownership keeps a commercial ice maker installation from stalling between trades. Send everyone the same model number, manual revision, site drawing, and schedule.
| Owner | Confirm before delivery |
|---|---|
| Buyer or facility manager | Final model, compatible storage, delivery route, placement, and schedule |
| Electrician | Circuit, phase, protection, connection point, and disconnect |
| Plumber | Potable water, shutoff, treatment, drainage, and local plumbing provisions |
| Refrigeration contractor | Remote condenser, line route, refrigerant work, and commissioning scope |
| Installer | Assembly, leveling, clearances, utility checks, and startup procedure |
A location photo is useful, but it doesn’t replace measured dimensions, utility information, or written trade assignments.
9. Complete the pre-delivery checklist
Release the order only when every commercial ice maker installation item below has a verified answer:
- Exact model and electrical suffix
- Compatible bin, dispenser, top kit, or adapter
- Packaged dimensions and complete delivery route
- Installed footprint, operating clearance, and service access
- Circuit, phase, overcurrent protection, and disconnect
- Potable-water connection, shutoff, test, and treatment plan
- Every drain connection, elevation, and route
- Ambient conditions and condenser airflow
- Remote condenser, line set, routing, and approvals, if applicable
- Assigned trades and installation date
At commissioning, record model and serial numbers for the head, storage equipment, and remote condenser. Keep the manual, parts breakdown, filter information, and service contact together. Observe the first cycles, inspect connections, and document approved setting changes.
Commercial ice maker installation FAQs
What do you need for a commercial ice maker installation?
A commercial ice maker installation needs the exact model’s approved location, electrical supply, potable-water connection, drainage, and ventilation clearances. Modular systems also need compatible storage; remote systems require a matched condenser, approved lines, and qualified refrigeration work.
Does a commercial ice maker need a dedicated electrical circuit?
A dedicated circuit may be required. Follow the exact manual, nameplate, and applicable electrical code because voltage, phase, breaker, connection, and disconnect requirements vary by model.
Does a commercial ice maker need a floor drain?
Not every installation needs a floor drain, but many machines and bins use gravity drainage. Confirm each outlet, elevation, route, air gap, and venting requirement. Some approved undercounter configurations use a drain pump.
How much clearance does a commercial ice maker need?
Required clearance varies by model. Follow its manual for side, rear, and top spacing, then preserve access for panel removal, condenser cleaning, and utility service.
Can any contractor install a remote condenser?
No. Remote condenser work requires a contractor qualified for the equipment, refrigeration scope, and local requirements. EPA Section 608 certification applies when work could reasonably violate the refrigerant circuit.
Approve the installation before releasing the order
A commercial ice maker installation should be approved against one exact model, not a generic equipment description. Confirm the delivery route, installed assembly, service access, utilities, drainage, ventilation, storage compatibility, and assigned trade responsibilities in writing. Keep the approval with the equipment record.
Commercial ice machine installation requirements vary by model and jurisdiction. Manufacturer documentation controls equipment requirements, while applicable authorities and licensed trades control local compliance. IceMachinesPlus information doesn’t replace those documents or professional site approval.
After the commercial ice maker installation survey is complete, compare suitable commercial ice machines or call (877) 900-4423 for help matching the machine, bin, dispenser, filter, and approved accessories to the documented site.
