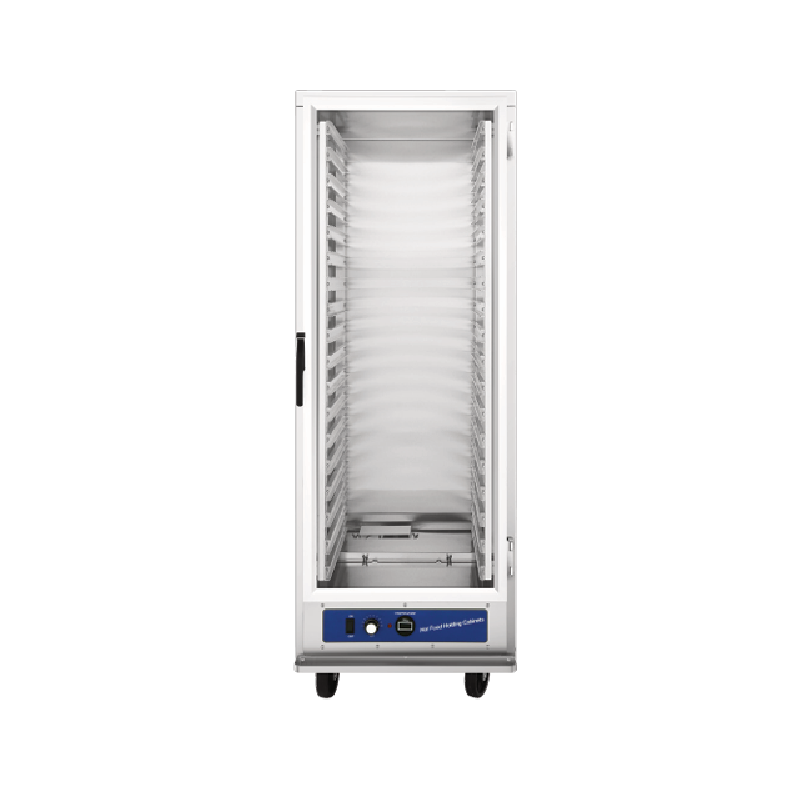

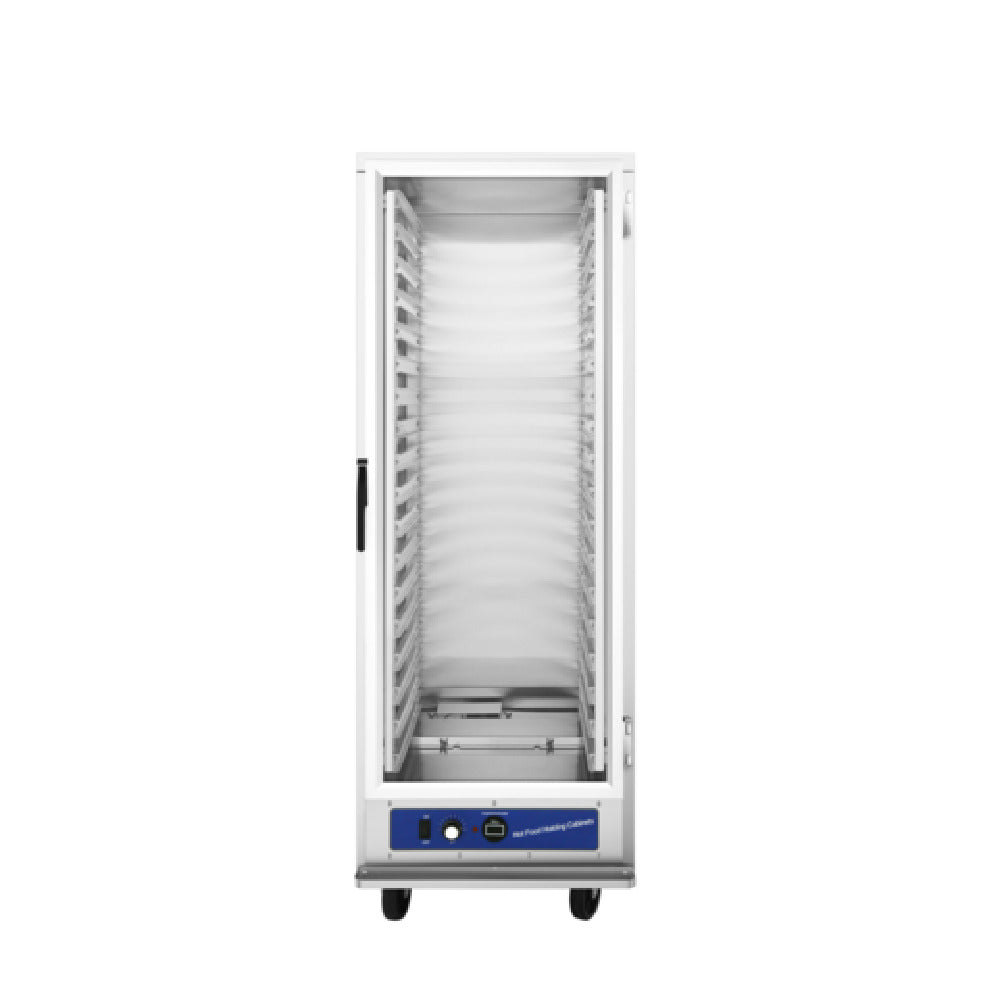

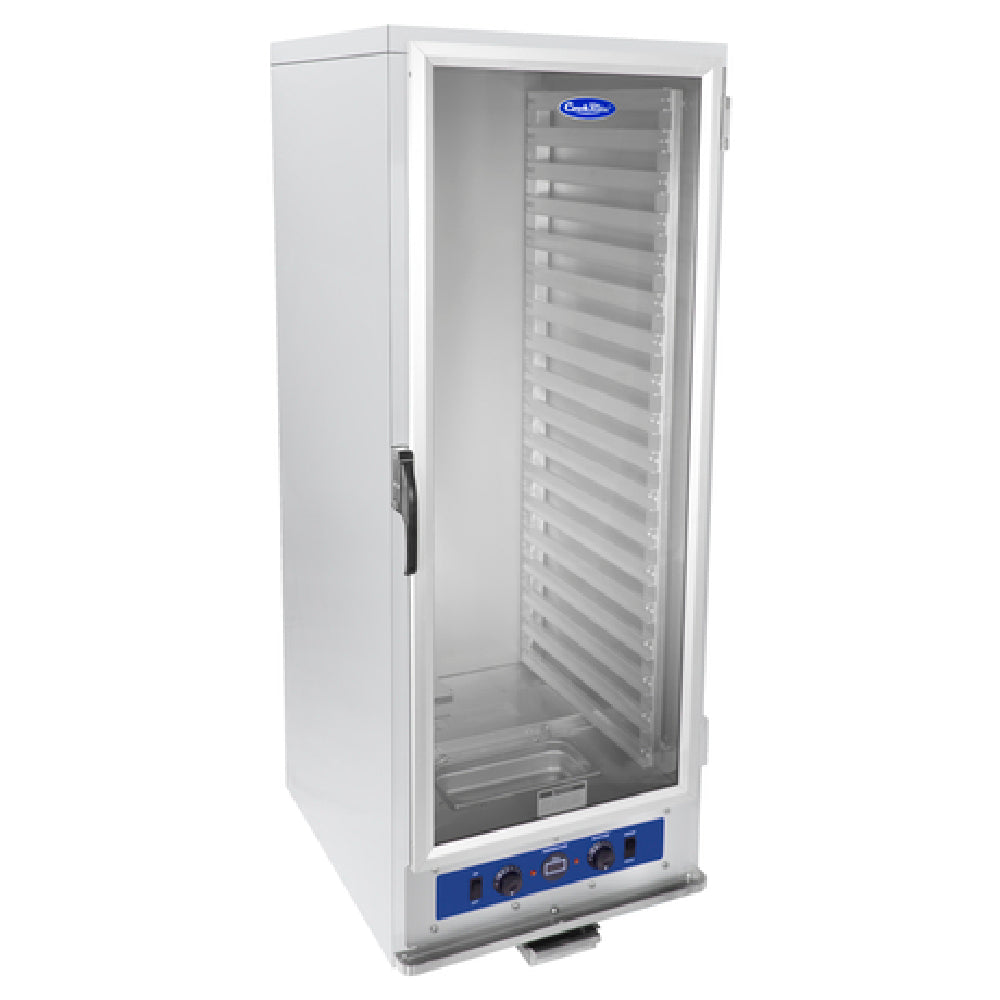

Atosa ATHC-18ES CookRite Warming / Holding Cabinet Insulated 25"W

Keep 18 full-size sheet pans hot, visible, and ready for service.

The Atosa ATHC-18ES hot holding cabinet gives restaurants, hotels, cafeterias, healthcare foodservice operations, and caterers an insulated, mobile station for prepared food. Its clear door, integrated pan slides, adjustable heat, and locking casters help staff organize batches, check pan availability, and keep service moving. Order through IceMachinesPlus with eligible free shipping and the 30-Day Price Match Guarantee.

Hold more food through busy service

Atosa rates the ATHC-18ES to accommodate eighteen 18-by-26-inch sheet pans. That capacity supports batch cooking, banquet staging, buffet replenishment, patient-meal service, catered events, and other workflows that need multiple pans held between preparation and service.

Integrated slides keep the pans organized inside the cabinet. The tempered-glass door lets employees check the load without opening the cabinet each time, helping preserve heat during service. The fully insulated cabinet helps limit heat loss, while its stainless steel interior and exterior support regular commercial use.

Atosa lists the door as field reversible, giving installers more flexibility when the standard swing conflicts with a wall, aisle, or adjacent equipment.

Review these points before approving the cabinet for the operation:

The 18-pan rating describes the available pan positions. It doesn’t guarantee that every combination of deep pans, pan covers, or tall food products will fit. Confirm the actual pans and food profile used by the operation before ordering.

Use the ATHC-18ES for holding, not reheating

This hot holding cabinet is designed to maintain properly cooked and heated food. Preheat the empty cabinet to the intended operating temperature before loading it, and don’t use it to bring cold or partially heated food up to a safe temperature.

Atosa states that a typical heat-up from a 72°F room temperature to 160°F takes approximately 15 minutes. Starting temperature, control setting, door openings, room conditions, and cabinet load can affect the actual preheating time.

The LED display reports cabinet temperature. It doesn’t confirm the internal temperature of the food. Employees should use a calibrated food thermometer and follow the operation’s food-safety plan, local health requirements, and product-specific holding procedures.

Fit the cabinet into the service workflow

The clear door helps staff see which pans are available before opening the cabinet. Atosa’s self-closing and stay-open design allows the door to close automatically when opened to 90 degrees or less and remain open past 90 degrees for loading and unloading.

Four casters support repositioning around the kitchen. Two swivel casters help with movement, and two locking casters stabilize the cabinet at its operating location. Put the cabinet in its intended position, lock the brakes, and confirm that it stands securely before connecting power.

Field reversal requires moving and reinstalling the hinges, handle, magnet, and related hardware. Follow the current Atosa ATHC and ATWC instruction manual, or have a qualified technician complete the work.

Measure the entire delivery path before arrival, including doors, hallways, elevators, loading areas, turns, and the final operating position. Preserve enough room to open the door, load pans, use the controls, remove the control drawer, and clean around the cabinet.

Confirm the electrical connection before delivery

This model operates on 120V power, is rated at 1,900 watts, and uses a NEMA 5-20P plug. Atosa includes a 10-foot power cord, but the outlet still needs to be positioned so the cord remains protected from heat, traffic, sharp edges, and caster movement.

Have a qualified electrician confirm that the grounded receptacle, branch circuit, voltage, and available capacity match the cabinet’s data plate and current installation instructions. Don’t alter the plug or connect the cabinet to an incompatible power source.

Inspect the cord before use, and stop operating the unit if the cord or plug is damaged. Electrical components, internal wiring, heating elements, thermostats, and blowers should be serviced only by qualified personnel.

Clean the cabinet without soaking its controls

Unplug the cabinet before cleaning or service. Wipe the approved interior and exterior surfaces with a clean cloth and mild detergent, then wipe them again as required and allow them to air-dry.

Atosa’s standard mild-detergent instruction specifically excludes the door panel. Clean the tempered-glass door using the method and products approved by Atosa for that surface.

Don’t clean the unit with a hose, pressure washer, or water jet. Never spray or pour water into the electrical box or removable heated control drawer. Excess water can damage the controls or create an electrical hazard.

The removable control drawer improves cleaning and service access, but it contains electrical and heating components. Disconnect power before removal, follow Atosa’s procedure, and leave internal repairs or electrical testing to an authorized service technician.

Inspect the door, gasket, pan slides, casters, brakes, cord, and plug as part of routine care. Correct damaged components before returning the cabinet to service.

Understand the efficiency, certifications, and warranty

This insulated heated holding cabinet is ENERGY STAR qualified. Its construction is designed to limit heat loss, but actual energy use still depends on the temperature setting, operating hours, door activity, room conditions, maintenance, and loading practices.

Atosa also lists the cabinet as cETLus and ETL-Sanitation certified, and its current specification sheet identifies conformance with NSF/ANSI Standard 4. Confirm that these certifications meet the purchasing, inspection, and local-code requirements for the installation.

Atosa currently provides a one-year parts-and-labor warranty for this model, subject to the manufacturer’s complete terms, exclusions, registration requirements, and service procedures. Keep the invoice, installation information, model number, and serial number available for warranty support.

Atosa ATHC-18ES FAQs

Is the Atosa ATHC-18ES a holding cabinet or a proofing cabinet?

It’s a hot-food holding cabinet, not a proofing cabinet. Atosa doesn’t list a proofing mode or humidity control for this model. It is designed to hold food that has already been cooked and heated to the required temperature.

How many pans does the ATHC-18ES hold?

It accommodates eighteen full-size 18-by-26-inch sheet pans. Actual loading flexibility depends on pan depth, covers, food height, and the spacing required between products.

What temperature range does the Atosa ATHC-18ES provide?

It has a published temperature-control range of 85°F to 207°F. The display reports cabinet temperature, so employees must verify internal food temperature with a calibrated thermometer and follow applicable holding requirements.

How long does the ATHC-18ES take to preheat?

Atosa lists an approximate 15-minute heat-up from 72°F ambient to 160°F under its stated conditions. Actual preheating time can change with the starting temperature, control setting, room conditions, door openings, and cabinet load.

Can the Atosa ATHC-18ES reheat cold food?

No. It is designed to hold food that has already been cooked or reheated to the required temperature. It shouldn’t be used to bring cold or partially heated food up to a safe serving temperature.

The Atosa ATHC-18ES is a strong fit for operations that need to stage up to 18 full-size sheet pans between cooking and service while preserving visibility, mobility, and organized access. Its insulated construction, adjustable heat, and commercial design provide a practical holding solution for busy meal periods, catered events, buffets, and batch service.

Compare additional food holding and warming equipment if the operation needs another capacity, cabinet height, door arrangement, or proofing function. Eligible free shipping covers standard curbside delivery on qualifying orders within the 48 contiguous United States. Liftgate service, inside delivery, residential delivery, limited-access delivery, and other add-on services may cost extra. For help confirming pan compatibility, electrical service, delivery access, or installation requirements before ordering, call 1-877-900-4423.
