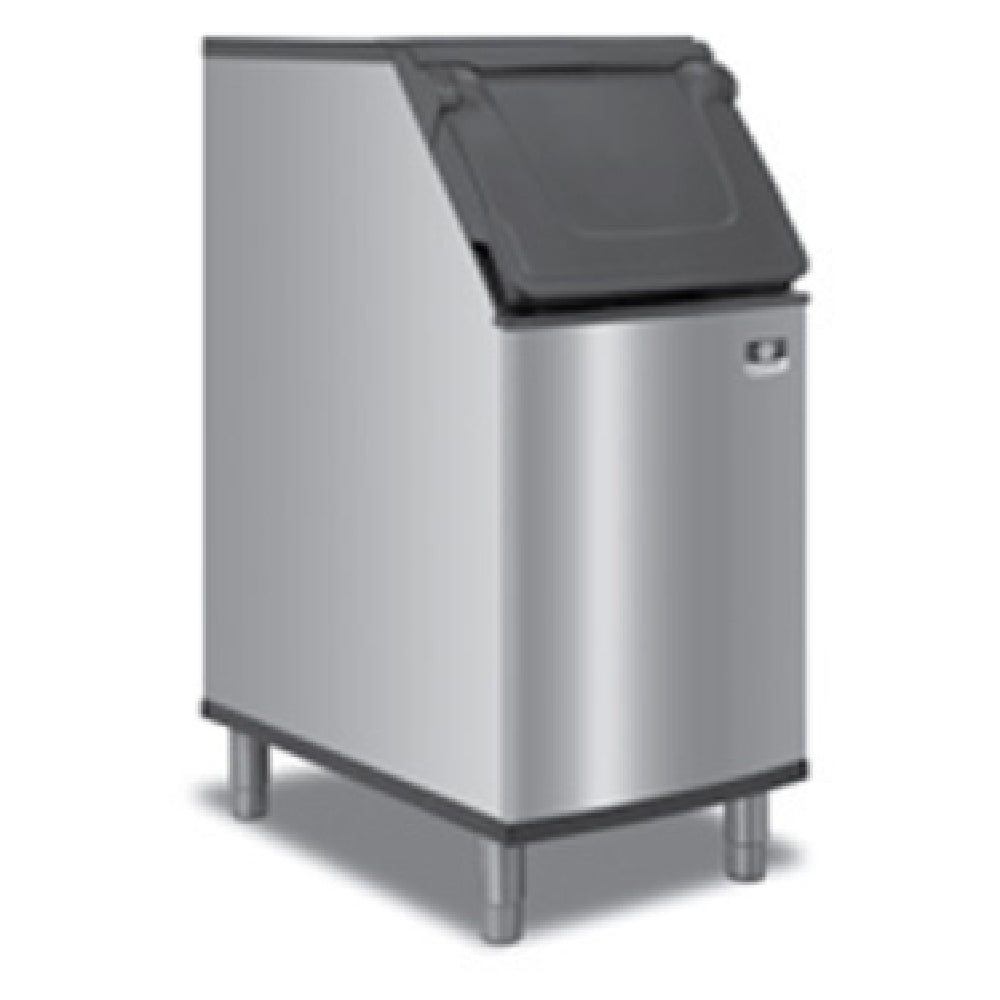

Manitowoc D420 Ice Bin 22"W 34"D X 50"H

Add a substantial ice reserve without giving up 30 or 48 inches of equipment-line width.

The Manitowoc D420 provides 383 pounds of published application capacity in a narrow 22-inch cabinet. Its accessible front door, sanitary scoop storage, and durable exterior make it a practical fit for restaurants, bars, hotels, healthcare facilities, and other operations that need dependable access to stored ice.

Order the Manitowoc D420 through IceMachinesPlus with qualifying free shipping and the 30-Day Price Match Guarantee. Call 1-877-900-4423 before checkout for help confirming the ice machine, adapter requirements, installed height, drainage, and delivery access.

The D420 stores ice but doesn’t produce it. A compatible Manitowoc modular ice machine must be purchased separately. The bin provides the reserve, while the mounted machine determines ice type, daily output, electrical service, water requirements, ventilation, and recovery time.

Size storage and ice production separately.

The Manitowoc D420 has 12.9 cubic feet of AHRI-rated storage volume and 383 pounds of application capacity. Manitowoc calculates application capacity from 90% of the bin’s volume using an average ice density of 33 pounds per cubic foot. It isn’t a guaranteed stored weight for every ice type or operating condition.

Ice can form a mound directly beneath the machine’s drop opening. If the mound reaches the mounted machine’s bin control, production may stop before ice spreads evenly through the cabinet. Staff may need to redistribute the ice according to Manitowoc’s instructions to make better use of the available volume.

Plan the system around peak demand, the mounted machine’s realistic output, and the time available for recovery. Include every use, such as beverages, food preparation, displays, and bulk filling. A larger reserve can absorb a rush, but it can’t correct an undersized ice machine.

Confirm the complete system before ordering.

The D420 is intended for approved configurations with compatible Manitowoc modular cube, flake, or nugget ice machines. Exact compatibility depends on the complete machine model and any required adapter or mounting components.

Don’t approve a pairing based on cabinet width alone. Review the official Manitowoc D-bin specifications and the current documentation for the intended ice machine. The machine and bin are sold separately.

The published 50-inch bin height includes adjustable legs set at 6 inches. Calculate the complete installed height after adding the ice machine and any required adapter. Also confirm that the receiving entrance, hallways, elevators, turns, ceiling height, and final service area can accommodate the equipment.

Install the bin indoors on a firm, level surface. Leave enough space to open the door, retrieve ice, clean the liner, access the drain, and service the mounted machine. The bin itself doesn’t require electrical service, but the complete system normally needs electricity, potable water, drainage, ventilation, and filtration appropriate for the ice machine and incoming water.

Protect ice quality through proper handling.

The door’s side grips allow staff to lift it from several positions, which is useful when one hand is occupied. Store the included scoop in the internal holder with its handle above the ice. Don’t leave the scoop loose inside the bin or use glasses, cups, or bare hands to retrieve ice. An optional K00461 external scoop holder is available separately.

The DuraTech exterior is designed to resist fingerprints, scratches, and corrosion while remaining easier to wipe clean. A protective base helps shield the lower cabinet from routine floor-cleaning exposure. These features simplify exterior care, but they don’t replace regular cleaning and sanitation.

Clean and sanitize the bin before initial use and at the intervals required by Manitowoc, local health regulations, water conditions, and the operation’s food-safety plan. Inspect the door, liner, scoop holder, drain, and surrounding area for residue, odors, standing water, or contamination.

Use only manufacturer-approved chemicals, concentrations, contact times, and rinsing procedures. The IceMachinesPlus commercial ice-machine cleaning guide can help with general planning, but the current Manitowoc instructions remain the controlling source.

Manitowoc D420 FAQs

The Manitowoc D420 is a strong fit when an operation needs substantial storage within a 22-inch equipment line. Its performance depends on pairing it with the correct ice machine, sizing production for real demand, and maintaining clean handling and drainage.

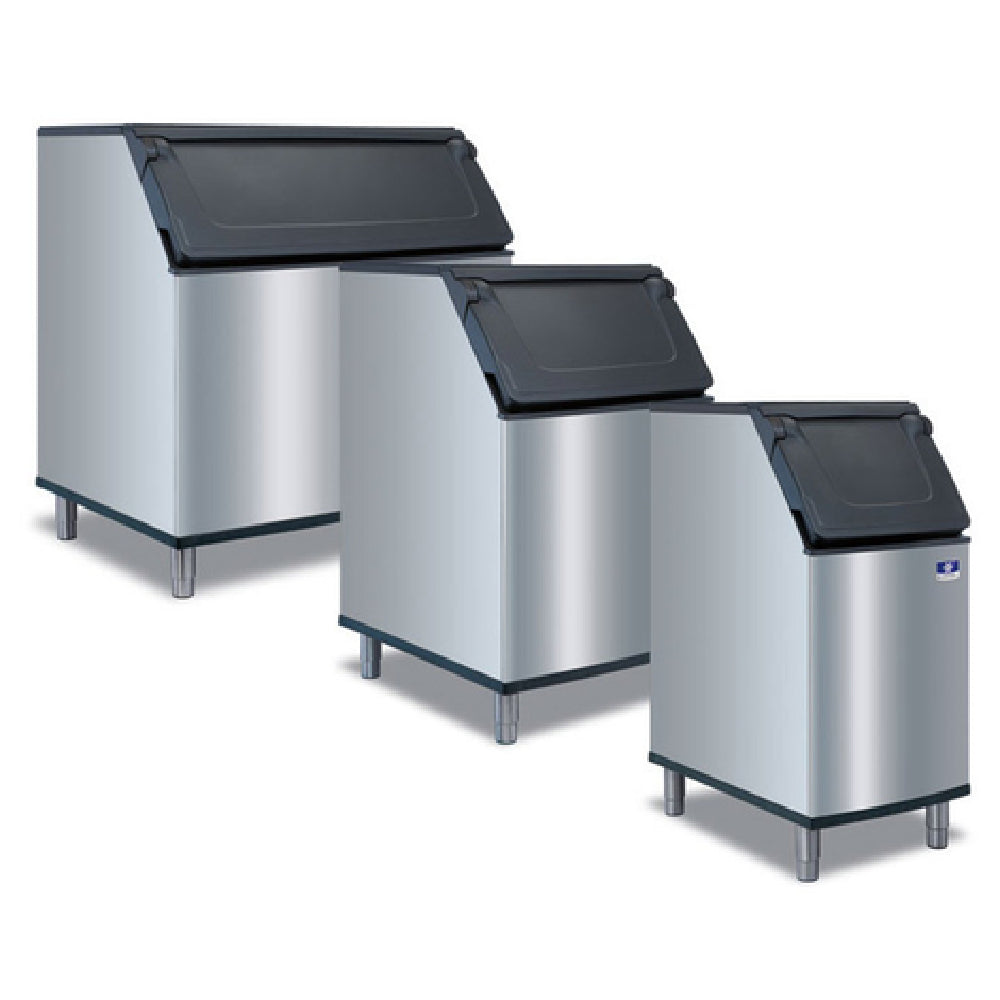

Compare other commercial ice bins if the operation needs more capacity, a wider cabinet, or another access format. For help confirming compatibility, installed height, and drainage, call 1-877-900-4423 before ordering.
