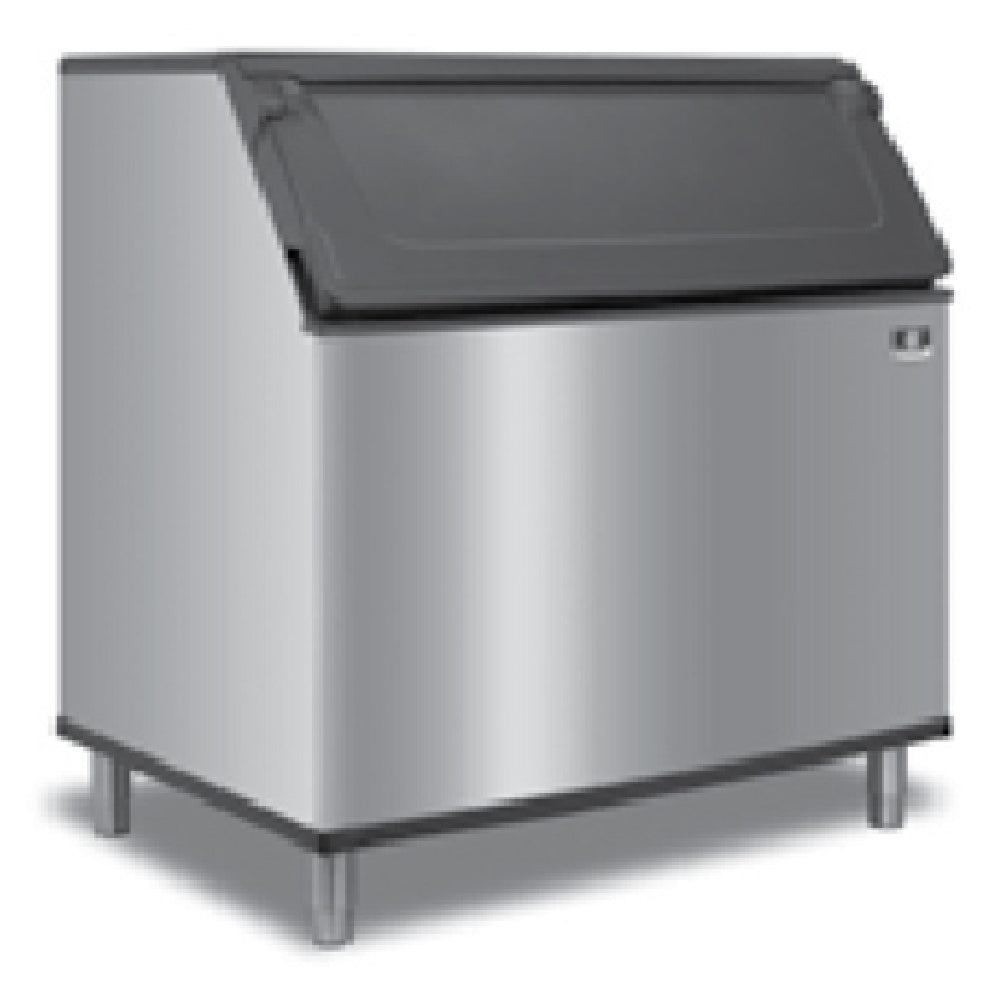

Manitowoc D970 Ice Bin 48"W X 34"D X 50"H With Side-hinged Front-opening Door

Put a high-volume ice reserve within easier reach.

The Manitowoc D970 pairs a published 882-pound application capacity with a 48-inch-wide footprint built for high-output modular systems. A 53-degree access angle, one-handed side grips, and a self-latching stay-open door make the deep interior easier for staff to work from during demanding service.

The practical details keep adding up. An insulated door helps reduce condensation and helps stored ice last longer, while the DuraTech exterior resists fingerprints and offers enhanced corrosion resistance. Inside, a blue polyurethane liner, an included sanitary scoop, and a built-in holder that keeps the scoop handle above the ice support cleaner, more orderly handling.

This is a commercial ice-storage bin, not an ice maker. Pair the Manitowoc D970 with a compatible modular ice machine head, the correct adapter or bin top when required, and a properly planned drain. Our commercial ice bin buying guide can help you evaluate the complete setup before ordering.

Confirm the complete system, not just the bin width.

Use the 882-pound figure for storage planning, not production planning.

The D970 doesn’t make 882 pounds of ice per day. Its application capacity is based on 90% of total volume and an average ice density of 33 pounds per cubic foot. Actual storage can vary with ice shape, distribution, and how well the ice is managed.

Size the ice machine head separately from the bin. The head’s 24-hour production must cover realistic daily demand under the site’s expected air and incoming-water temperatures. The bin then provides the reserve needed between production and peak use. Our commercial ice machine sizing guide explains how those two decisions work together.

Make a deep bin more manageable during service.

Large-capacity storage is useful only when staff can retrieve the ice efficiently. The D970’s door opens to a 53-degree angle, and built-in grips let an operator lift it from the left, right, or center. The cammed, self-latching design holds the door open, reducing the need to support it while scooping.

Manitowoc also includes an approximately 5.3-pound-capacity sanitary scoop and a built-in holder that positions the handle above the stored ice. Adjustable legs support proper leveling and offer some working-height flexibility, though the final position must still suit the drain, equipment above, and staff workflow.

Match the modular head and adapter before delivery.

A 48-inch bin can support several approved modular-head arrangements, but a head that physically fits isn’t automatically an approved match. Narrower heads commonly require an adapter or bin-top kit, and a wider machine can’t be placed on a narrower bin.

Check the current compatibility table for the exact model, cooling type, air-discharge pattern, and layout. Side-by-side machines must be water-cooled, remote, or approved self-contained air-cooled models with top-air discharge. Confirm every required component before ordering.

Manitowoc publishes three-year parts-and-labor coverage for qualifying D-bin installations, subject to its current warranty terms, installation requirements, maintenance conditions, and exclusions. Record the model, serial number, and installation date, retain the purchase documents, and complete any required registration.

Protect the ice reserve with disciplined cleaning and drainage.

The insulated door helps reduce sweating, but it doesn’t replace routine cleaning. Clean and sanitize the bin, scoop, holder, liner, door, and food-zone surfaces according to current Manitowoc instructions and applicable health requirements. Keep the drain open, correctly routed, and free of standing water.

Use only approved chemicals and procedures. Abrasive tools and unsuitable cleaners can damage food-zone surfaces or the exterior finish. Our commercial ice machine cleaning guide supports general planning, while Manitowoc’s instructions remain the controlling source for this bin.

Frequently asked questions about the Manitowoc D970

Does the Manitowoc D970 make ice?

No. The D970 is an insulated storage bin with no refrigeration system or ice-making mechanism. It must be installed beneath an approved modular ice machine head.

How much ice does the Manitowoc D970 hold?

Manitowoc publishes an 882-pound application capacity and 29.7 cubic feet of AHRI-certified bin volume. Usable storage can vary with the ice type and how the ice is distributed and managed.

Which ice machines fit the Manitowoc D970?

Compatibility depends on the exact modular-head model, width, cooling method, air-discharge pattern, and required adapter or bin-top kit. Verify the complete combination in current Manitowoc literature before purchasing; matching the 48-inch bin width alone isn’t enough.

Does the Manitowoc D970 need a drain?

Yes. Meltwater leaves through a 3/4-inch bin drain. The installation needs properly sized and routed drainage with the required slope, venting, air gap, and local code compliance.

How should the Manitowoc D970 be cleaned?

Empty the bin, clean and sanitize its food-zone surfaces, and wash the scoop and holder at the frequency required by Manitowoc, water conditions, usage, and local health rules. Follow the current manufacturer instructions for approved chemicals, concentrations, contact times, rinsing, and restart procedures.

The Manitowoc D970 is a compelling match for high-output systems that need a substantial reserve and straightforward front access in a 48-inch footprint. Its stay-open door, flexible grips, insulated construction, included scoop, and durable finish turn capacity into practical day-to-day value. Compare other commercial ice bins if the available space, required reserve, or selected ice machine head calls for a different configuration.
