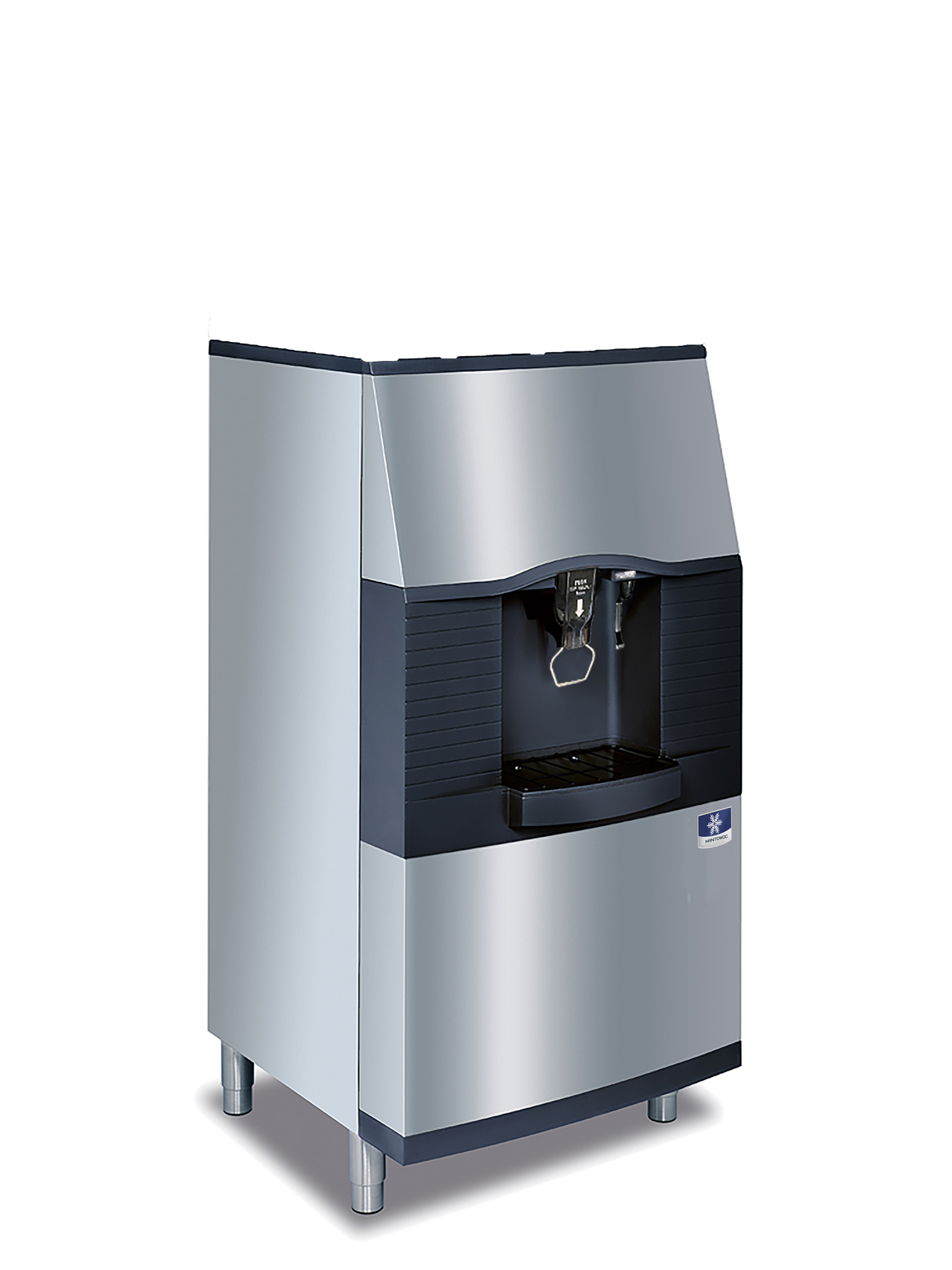

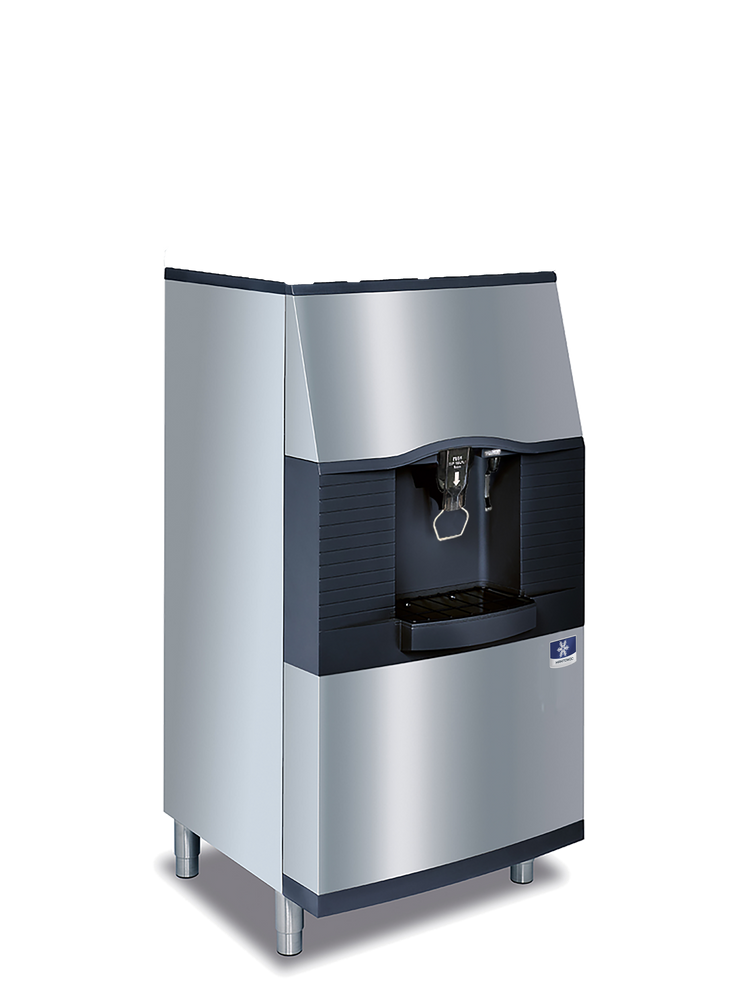

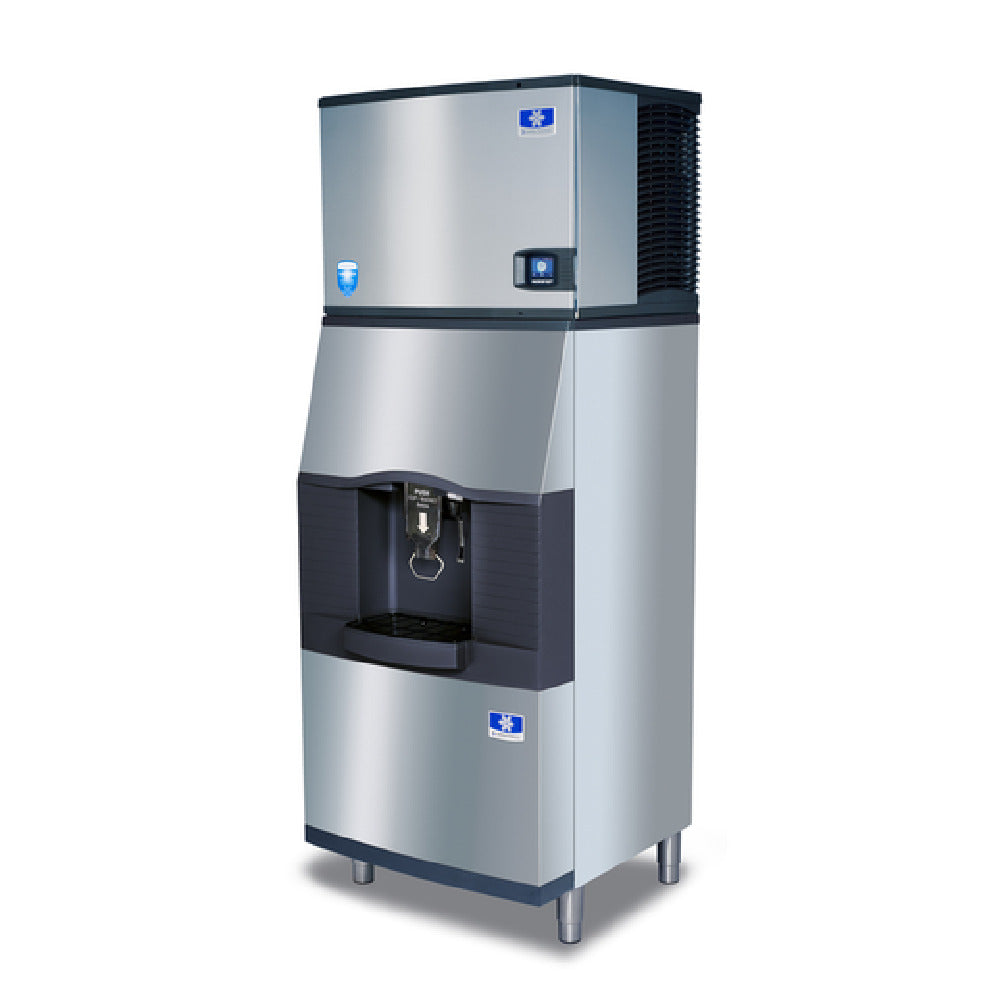

Manitowoc SFA292 Vending Ice Dispenser With Built-In Water Valve Touchless Lever

Give guests convenient ice and water from one station.

The Manitowoc SFA292 combines a 180-pound ice reserve, container-activated dispensing, and a built-in water valve in one floor-standing unit. It’s designed for hotels, lodging properties, workplace refreshment areas, and other controlled self-service locations where users need to fill buckets or glasses without touching the ice chute by hand. Order through IceMachinesPlus with qualifying free shipping and the 30-Day Price Match Guarantee.

The SFA292 stores and dispenses ice but doesn’t produce it. A compatible Manitowoc modular ice machine must be ordered separately and installed with the required baffle, adapter components, utilities, and clearances.

Is this dispenser right for the site?

Understand what touchless dispensing means

The ice chute is activated by the container rather than the user’s hand. A bucket or glass presses the rocking chute, which starts the dispensing mechanism and directs ice into the container. This reduces the need to touch a shared ice control by hand.

“Touchless” doesn’t mean the SFA292 uses an optical or motion sensor. The container must physically press the chute lever. That distinction matters in locations expecting fully sensor-activated dispensing.

The water system operates separately. Pressing the water valve lever sends water through the nozzle and into the container. A built-in valve is included, but the dispenser still needs a properly installed potable-water connection. The valve doesn’t filter the water, so filtration should be planned separately based on incoming water quality, flow requirements, and the mounted ice machine.

Reduced hand contact can support a cleaner self-service workflow, but it doesn’t replace regular cleaning, sanitizing, or responsible use.

Size storage and ice production separately

The SFA292 provides a published ice-storage capacity of 180 pounds. That reserve can support concentrated demand, but the mounted ice machine determines how much replacement ice becomes available and how quickly the system recovers after a busy period.

Account for:

• The number of rooms, users, or service areas and their peak occupancy patterns
• The average amount of ice taken during each visit
• The mounted machine’s output under realistic operating conditions
• The required recovery time after a heavy draw
• Combined demand from guest buckets, bottles, and drinking glasses

A larger reserve can absorb a rush, but it can’t correct an undersized ice machine. Conversely, a high-output machine needs enough storage and dispensing capacity to support the way the property actually uses ice.

Match the machine and dispenser as one system

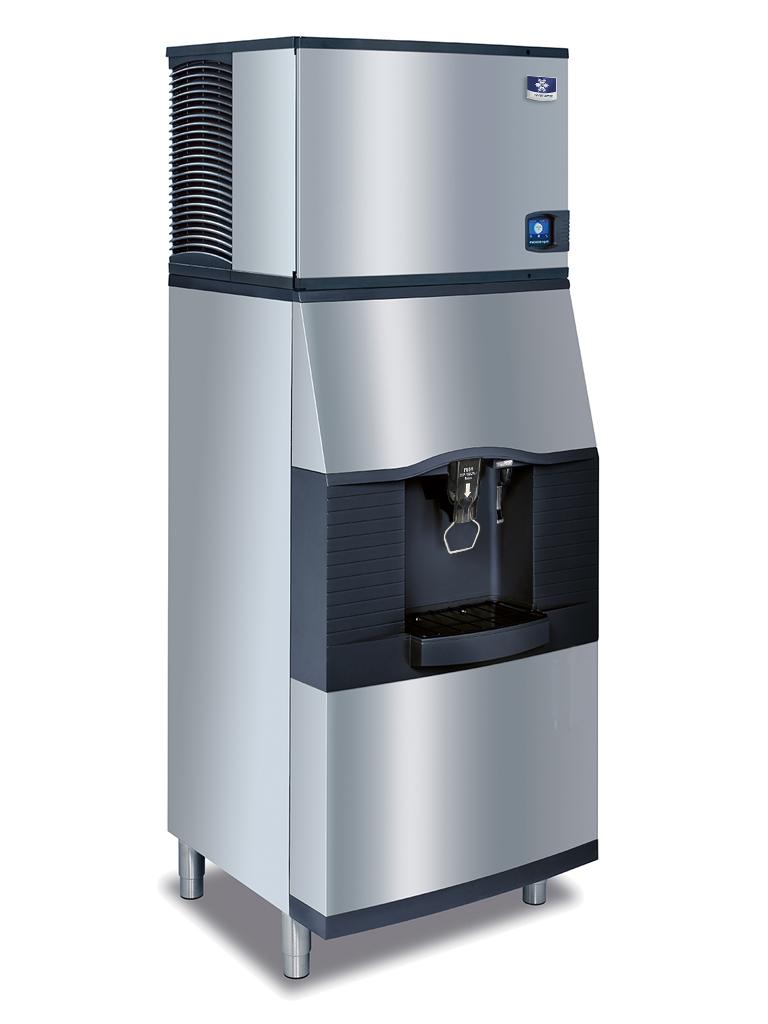

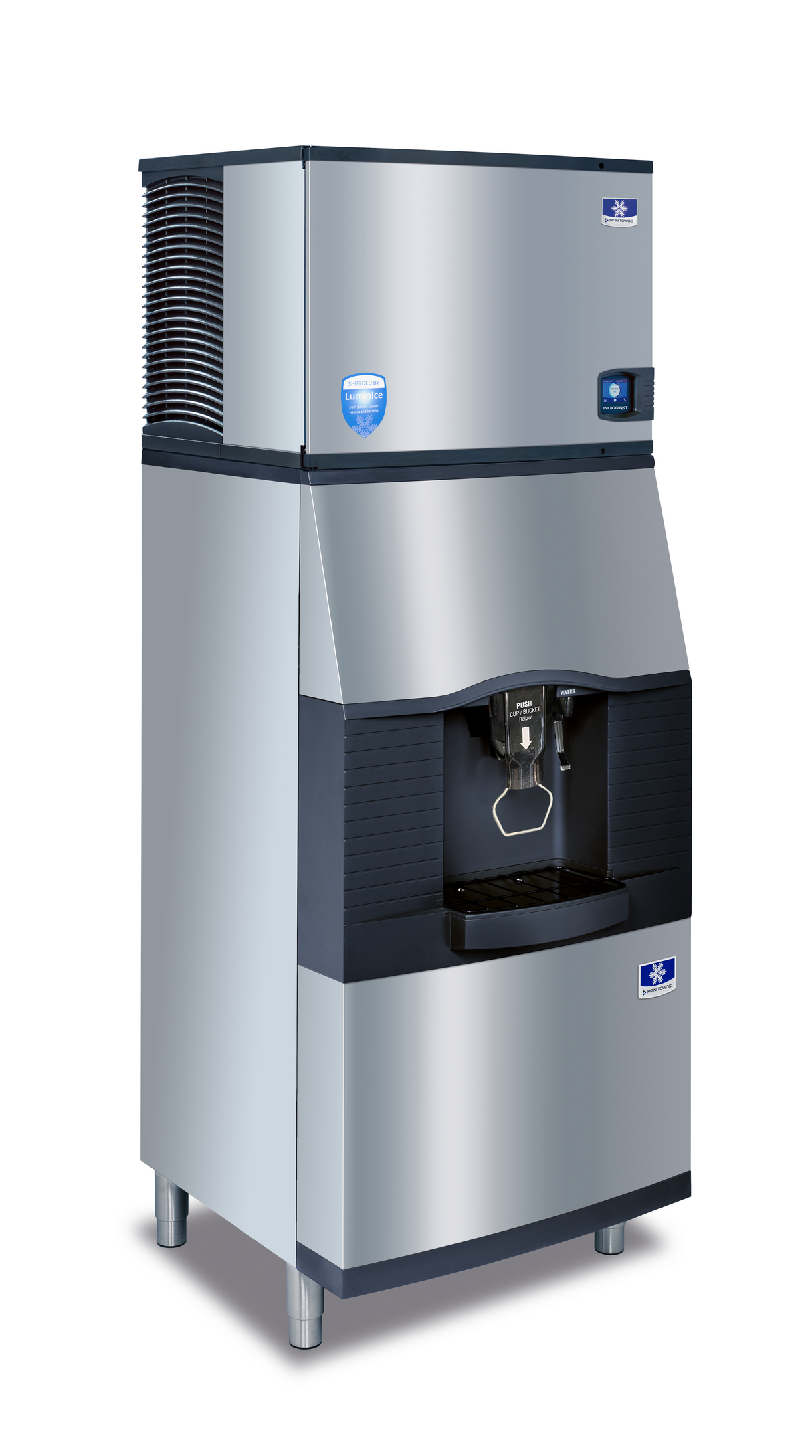

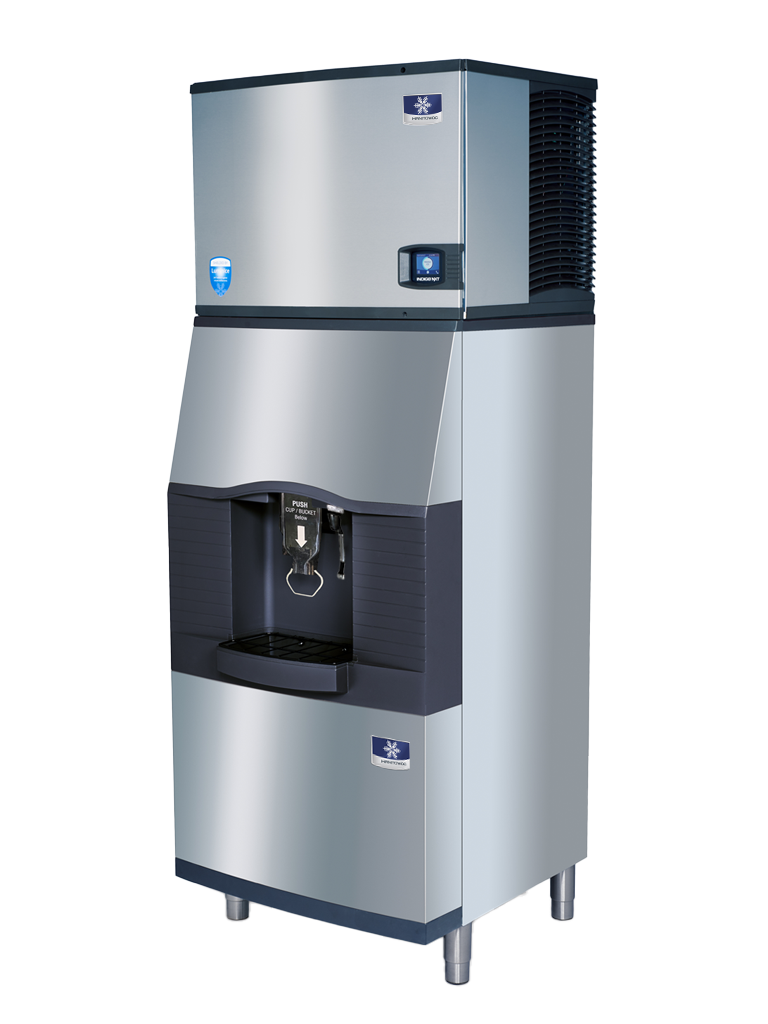

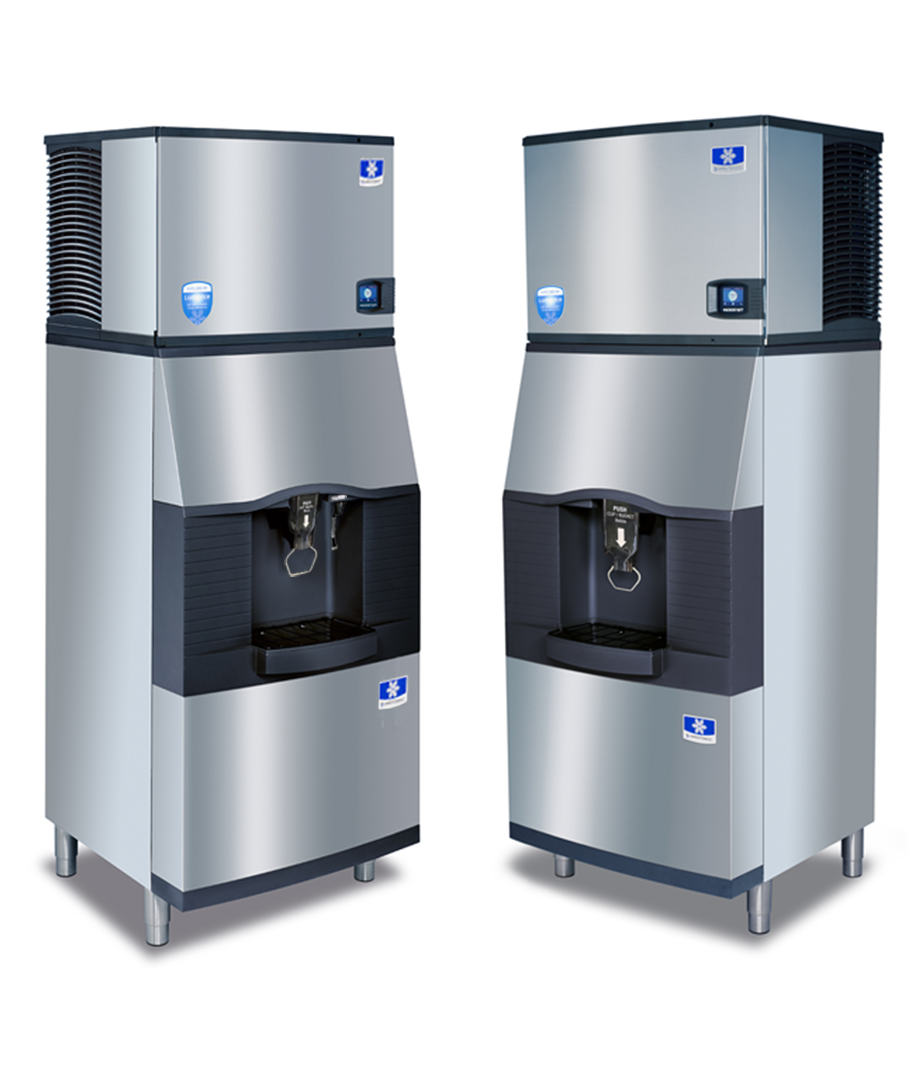

Treat the dispenser, modular ice machine, adapters, baffles, utilities, and filtration as one coordinated system. The SFA292 accepts one approved 22- or 30-inch Manitowoc modular machine producing compatible dice or half-dice ice.

A 22-inch machine doesn’t simply sit on the dispenser because its width appears close enough. It requires the approved adapter and baffle components specified for that installation. A 30-inch machine also needs the correct baffle arrangement. Confirm compatibility against current Manitowoc documentation for the complete ice-machine model before ordering.

The installation plan should also address:

• The combined installed height and operating weight
• Airflow and service clearances for the mounted ice machine
• Separate electrical requirements for the dispenser and ice machine
• Potable-water connections for ice production and water dispensing
• Properly routed and vented drains for both pieces of equipment
• Access for cleaning, filter replacement, inspection, and repair

Mixing unapproved components can create dispensing, sanitation, drainage, service, and warranty problems. Model-specific compatibility matters more than matching cabinet widths.

Confirm container fit and placement

The dispensing area must accommodate the property’s actual containers. Test the dimensions and shape of the largest guest bucket, bottle, or glass before approving the installation. A container that technically fits but can’t press the chute comfortably may spill ice or be awkward to use.

Before delivery, verify:

• Container clearance and comfortable chute activation
• A firm, level floor outside the main traffic path
• A delivery route that accommodates the complete cabinet
• Rear access for connections, cleaning, and service
• Drain routing and the mounted machine’s required clearances

Install the equipment indoors and protect it from direct sunlight, heat sources, grease, dust, and airborne debris. These conditions can affect sanitation and, when an air-cooled ice machine is installed above the dispenser, restrict condenser performance.

Maintain the complete ice-and-water path

Routine care needs to cover the bin, dispensing chute, water nozzle, drain pan, drains, and the mounted ice machine. Follow the current Manitowoc cleaning and sanitizing procedures for each component, including the prescribed chemicals, concentrations, contact times, rinsing steps, and service intervals.

During normal operation:

• Keep the visible chute, nozzle, drain pan, and surrounding surfaces clean.
• Watch for slow drainage, standing water, residue, odors, or contamination.
• Discard ice that may have been exposed to contaminants.
• Investigate slow, crushed, irregular, or continuous dispensing promptly.

Internal inspections, adjustments, and repairs should be handled by a qualified service technician. For broader sanitation planning, review our commercial ice-machine cleaning guide, then use the current Manitowoc manuals as the controlling instructions for this equipment.

Manitowoc SFA292 FAQs

Does the Manitowoc SFA292 make ice?

No. The SFA292 stores and dispenses ice supplied by a separately purchased, compatible Manitowoc modular ice machine. The mounted machine determines daily production, while the dispenser provides the 180-pound reserve and controlled delivery.

How does touchless ice dispensing work?

A bucket or glass physically presses the rocking ice chute, activating the dispensing mechanism without requiring the user to touch the chute by hand. It’s container-activated, not controlled by an infrared motion sensor.

Does the SFA292 dispense water?

Yes. It includes a built-in water valve with a separate activation lever and nozzle. The dispenser still requires a potable-water connection, and filtration should be added when required by incoming water conditions or the mounted ice machine.

Which ice machines fit this dispenser?

It accepts one approved 22- or 30-inch Manitowoc modular ice machine producing compatible dice or half-dice ice. The correct baffle and, for applicable 22-inch configurations, adapter components are required. Confirm the complete model combination in current Manitowoc documentation before ordering.

How much ice does it hold?

The dispenser holds up to 180 pounds of ice. Actual availability depends on demand, the output of the mounted machine, environmental conditions, and how quickly the system must recover after busy periods.

The Manitowoc SFA292 is a practical choice when a property needs substantial ice storage, bucket-friendly dispensing, and a separate drinking-water outlet in one self-service station. Its success depends on pairing it with the correct modular ice machine and planning the complete installation before delivery.

Browse additional hotel ice dispensers if you need another capacity, cabinet width, or dispensing format. Qualifying orders receive free shipping, and the 30-Day Price Match Guarantee helps protect your purchase. For help confirming the machine, baffle, adapter, utilities, and container fit, call 1-877-900-4423 before checkout.
