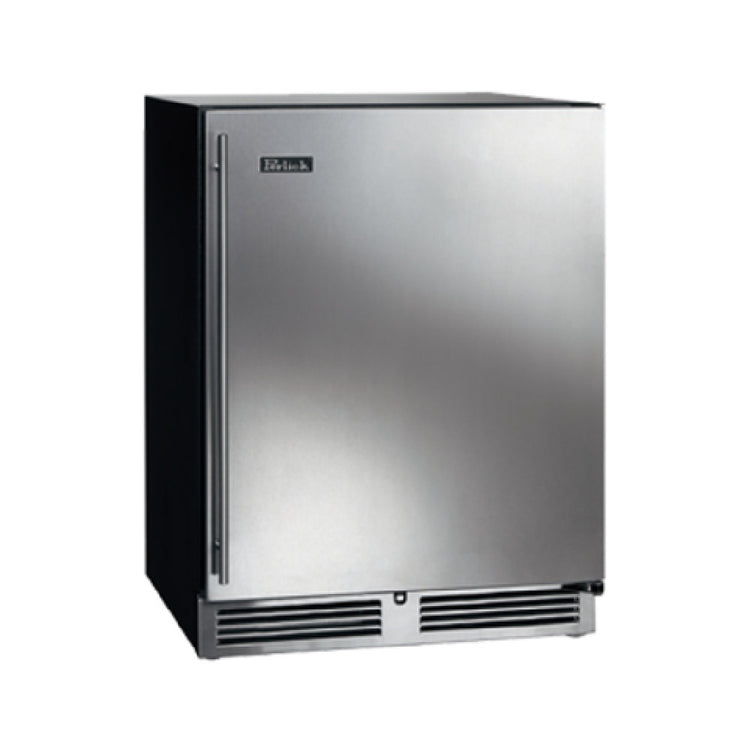

Perlick HB24RS4 ADA Series Refrigerator Undercounter 23-7/8"W X 24"D

ADA-height beverage refrigeration, backed by equipment specialists.

The Perlick HB24RS4 provides 4.8 cubic feet of refrigerated storage for bottled and canned drinks beneath an ADA-height counter. IceMachinesPlus supports the purchase with free shipping on eligible orders, equipment guidance before and after delivery, and added buying confidence through its 30-Day Price Match Guarantee, subject to current program terms.

Before ordering, confirm that the Perlick HB24RS4 matches the intended storage application and installation site. Perlick specifies this refrigerator for storing and displaying non-potentially hazardous bottled or canned products. Reserve it for that application, and use purpose-built refrigeration for potentially hazardous food, medication, or other temperature-critical materials.

Use these planning checks to prevent fit, access, and ventilation problems:

The Perlick HB24RS4 operates from 34°F to 42°F and arrives with a 36°F factory set point. Its digital controller supports adjustments within that range, while an audible alarm alerts staff when the door remains open. Automatic, off-cycle defrost limits manual intervention without removing the need for cleaning and temperature checks.

Two black vinyl-coated, full-extension shelves bring products forward for easier loading and retrieval. Because airflow controls temperature consistency, arrange bottles and cans without blocking the internal louvers or fan guard. Perlick calls for at least one inch between stored products and internal air openings.

For a smooth startup:

• Let the refrigerator operate for at least 24 hours before loading it so the cabinet temperature can stabilize.
• Confirm product temperature with an accurate thermometer instead of relying only on the controller display.
• Keep the door closed as much as practical during the initial pull-down period.
• Make sure stored products don’t interfere with the door seal.
• If the configuration has a solid wood or stainless steel door, switch off the manual interior light before closing it.

The refrigerator uses self-contained refrigeration with R600a refrigerant. Moisture flows into a self-evaporating condensate pan, so a separate drain connection isn’t required under normal installation conditions. Qualified, Perlick-authorized technicians must perform refrigeration-system service because R600a is flammable.

Routine care is straightforward but important. Perlick instructs operators to clean the Perlick HB24RS4 condenser every three months with a soft-bristle brush and vacuum. Disconnect electrical power first, avoid damaging the condenser fins, and don’t use abrasive cleaners, steel wool, or hydrochloric acid on the stainless steel surfaces. Dust, blocked airflow, frequent door openings, and poor door sealing can increase run time or raise the cabinet temperature.

This PDP identifies a solid-door refrigerator. Perlick also produces the wider HB24RS4 series with different door finishes, handles, and handing arrangements, so confirm the exact ordered configuration before purchase. This check is especially important when matching surrounding cabinetry or positioning the refrigerator beside a wall. Perlick identifies the door as field reversible, but the installation still needs sufficient swing and hinge-side clearance for full shelf extension.

The Perlick HB24RS4 is a strong fit for bars, hospitality suites, executive refreshment areas, break rooms, and service counters that need bottled or canned beverages at an accessible undercounter height. It combines a compact 24-inch footprint with front ventilation, full-extension access, digital control, and plumbing-free installation. For frozen products, wine-specific temperatures, potentially hazardous food, or greater capacity, use refrigeration designed and listed for that application.

A few details about this Perlick undercounter refrigerator are especially important.

What is the Perlick HB24RS4 designed to store?

It is designed to store and display non-potentially hazardous bottled or canned products. Its NSF/ANSI 7 listing does not cover potentially hazardous food, medication, vaccines, or other products requiring specialized temperature-controlled storage.

Is the Perlick HB24RS4 a good fit for commercial beverage service?

Yes, when the operation needs compact storage for bottled or canned drinks in a 24-inch undercounter space. Its ADA-height cabinet, two full-extension shelves, 34°F to 42°F operating range, front ventilation, and plumbing-free installation support bars, hospitality areas, break rooms, and beverage stations.

How do I know if this refrigerator will fit my installation?

Provide an opening at least 24 inches wide, 24 inches deep, and 32-1/8 inches high. Also allow approximately 25 inches for the door swing, preserve hinge-side clearance in corner installations, leave two inches open in front of the condenser, and locate a grounded 115V outlet within reach of the six-foot cord.

Where can I find the manual for my Perlick undercounter refrigerator?

Use the official Perlick installation and operation manual. It covers installation, control settings, loading, temperature checks, cleaning, troubleshooting, service, and safety requirements for the HB24 series.

How can I verify the Perlick HB24RS4 warranty?

Perlick’s published specification sheet states a one-year warranty and a five-year compressor warranty. Confirm coverage, eligibility, and exclusions through Perlick warranty and support, because the current manufacturer warranty document controls. Retain the purchase and serial-number records, and submit Perlick’s warranty registration form. Perlick states that without registration, the installation date reverts to the ship date.
