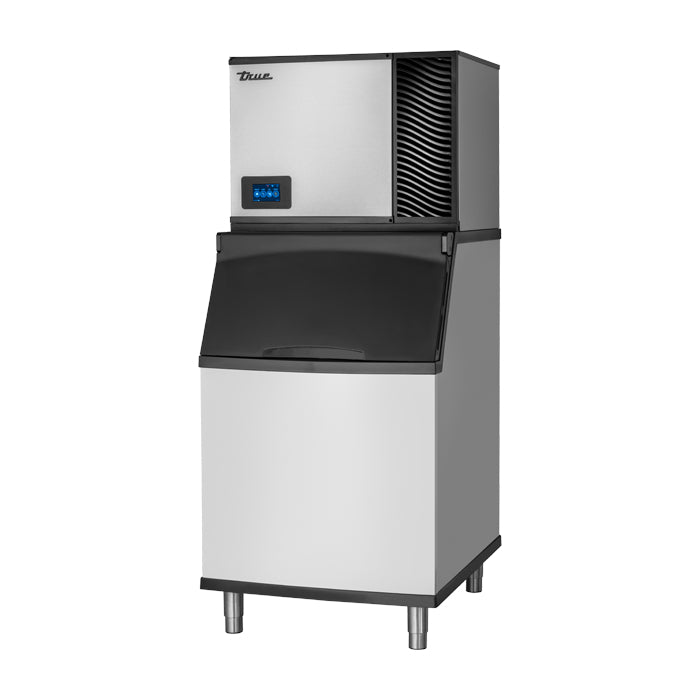

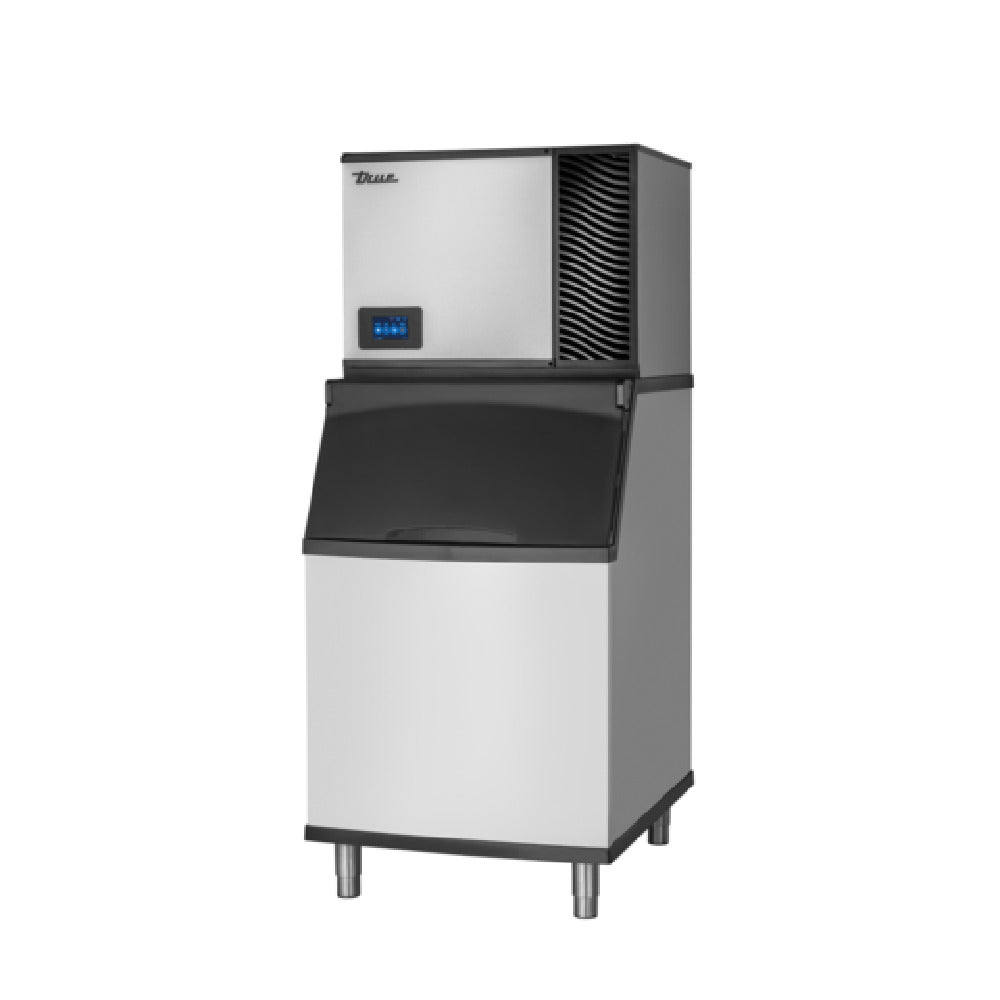

True Refrigeration TCIM-430-HA1-A True Ice Series Ice Maker Cube Style (half)
| Manufacturer | True Refrigeration |
|---|---|
| Model Number | TCIM-430-HA1-A |
| Manufacturer Part # | TCIM-430-HA1-A |
| Width (side - side) | 30 - 39" Wide |
| Energy Efficiency | ENERGY STAR® |
| Ice Type | Half Size / Half Dice Cubes |
| Condenser Type | Air-cooled |
| Production per 24 hr | 401 - 500 Lb = 183 - 227 Kg |
| Refrigeration | Self-contained Refrigeration |
| Height | 22" |
| Width | 30" |
| Depth | 24" |
| Weight | 180 lbs |
| cULus | Yes |
| UL EPH Classified | Yes |
| ENERGY STAR | Yes |
This policy governs all purchases, transactions, and participation in any energy rebate or incentive program between the customer ("Customer") and Restaurant Supply, LLC (collectively, the "Company," “RS”). This policy is an addendum to RS’s Terms of Service and Privacy Policy. By purchasing or participating in any rebate-related program through RS, Customer agrees to these Terms. If Customer does not agree, Customer must not proceed with the purchase.
- THIRD-PARTY PROGRAMS - RS does not operate or control any energy rebate or incentive programs. All programs are administered by individual states or their authorized program administrators, and may involve third-party partners, including but not limited to Energy Solutions. RS does not guarantee eligibility, approval, rebate amounts, processing timelines, or payment. All determinations are made solely by the applicable program authority or its designated partners.
- CUSTOMER RESPONSIBILITY FOR PROGRAMS - Customer is solely responsible for understanding and complying with all applicable state program requirements. Programs may change, pause, or terminate at any time without notice. RS has no obligation to notify Customer of any updates. Customer is responsible for working directly with the applicable state, program administrator, or authorized partner regarding applications, compliance, data submission, and disputes. RS may provide general information or contact details if available, but has no obligation to do so and does not guarantee accuracy. The following links are provided for convenience only and are third-party resources not controlled by RS: masssaveincentives.com, energy.ri.gov, nhincentives.com, focusonenergyinstantdiscounts.com, swgasinstantrebates.com, dteincentives.com, ilinstantrebates.com, pnwutilityrebates.com, duqlightmidstream.com, avistamidstream.com, californiainstantrebates.com, mydukeincentives.com. RS disclaims all responsibility for the content, accuracy, availability, or updates of these external websites.
- THIRD-PARTY PARTNER TERMS & DATA HANDLING - Certain rebate programs may be administered or supported by third-party partners, including Energy Solutions. By participating in such programs, Customer agrees to the partner’s applicable terms and policies, including energy-solution.com/privacy-policy and energy-solution.com/website-terms-of-use. Customer understands that program-related data may be collected, processed, and managed by such partners, and Customer must work directly with them regarding any data-related requests or issues. RS maintains its own separate privacy practices and is not responsible for third-party data handling.
- NO RELIANCE - Any information provided by RS regarding rebate programs is for general informational purposes only and may not reflect current program requirements. Customer acknowledges that purchasing decisions are made independently and not in reliance on RS for eligibility or compliance determinations.
- COMMERCIAL USE ONLY - Customer certifies that all equipment purchased will be installed and used at a valid commercial business location and that all information provided is accurate and complete.
- INSTALLATION & USE REQUIREMENTS - Customer agrees that all equipment will be installed and placed into service within a reasonable timeframe after delivery, will remain in use at the declared location in accordance with program requirements, and will not be modified or powered by any fuel or power source other than the original OEM-certified configuration.
- NO RESALE OR MISUSE - Equipment purchased through any rebate or incentive program may not be resold, redistributed, stockpiled, or relocated in violation of program rules. Any misuse, misrepresentation, or circumvention of program requirements may result in disqualification, repayment obligations, penalties, or enforcement action.
- THIRD-PARTY PURCHASES - If Customer purchases on behalf of an end user, all rebates and incentives must be passed through to the end user, and all program requirements must be disclosed. Customer remains responsible for compliance by all parties.
- NO GUARANTEE OF REBATES - RS does not guarantee that any product qualifies for a rebate or that any rebate will be approved, funded, or paid. Program availability and funding are determined solely by the applicable program authority.
- PRICING & ADJUSTMENTS - Any pricing or discounts related to rebate programs may be subject to adjustment if program requirements are not met. Customer is solely responsible for any loss of incentives or repayment obligations.
- DOCUMENTATION & AUDITS - Customer agrees to maintain all required documentation and to cooperate with any audits or verification requests by program administrators or partners. Failure to comply may result in denial of rebates or repayment obligations.
- INDEMNIFICATION - The customer agrees to indemnify and hold harmless RS, its owners, employees, agents, and affiliates from any claims, penalties, fines, damages, liabilities or attorneys’ fees and legal defense costs, whether or not litigated, arising from the customer’s participation in the program, including any audit, investigation, or enforcement action related to noncompliance.
- LIMITATION OF LIABILITY - RS is not liable for any denied, delayed, reduced, or canceled rebates, program changes, third-party errors, or indirect or consequential damages. RS’s total liability is limited to the purchase price of the products sold.
- ORDER REVIEW & CANCELLATION - RS reserves the right to refuse or cancel any order that may violate program rules or applicable laws. RS may request additional documentation and may report suspected misuse or fraud.
- NO ADVISORY ROLE - RS is not acting as an advisor, consultant, or agent regarding any rebate or incentive program. Customer is solely responsible for verifying all requirements independently.
About this item
Product Details
Product Details
High-output half-cube ice with smarter control built into the machine head.
If 346 lb of ice per day under warm operating conditions covers your peak demand, the TCIM-430-HA1-A gives restaurants, bars, hotels, cafeterias, and venues a capable 30-inch modular option. IceMachinesPlus is an authorized True dealer and backs eligible purchases of this True ice machine with a 30-Day Price Match Guarantee.

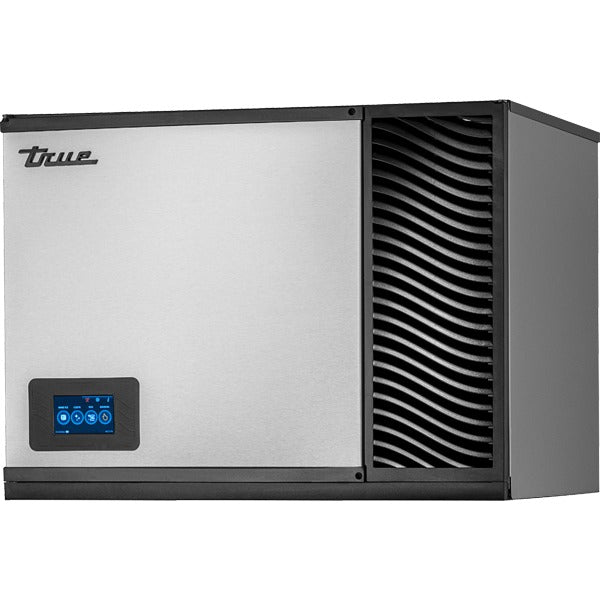

The TCIM-430-HA1-A is a modular production head that mounts on a compatible ice bin or dispenser, sold separately. Pairing the head with correctly sized commercial ice storage provides the reserve needed for rush periods. Its half cubes pack readily into beverage glasses, making this configuration practical for busy drink service.
According to True’s current TCIM-430 specification sheet, this model produces 450 lb per 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, production is 346 lb per day. Use the 346 lb figure when evaluating this True ice machine for a warm kitchen, then compare it with your busiest day and service window. Our commercial ice machine sizing guide can help calculate production and storage needs.
Before installation, confirm the complete system, utilities, and ventilation. Each condition can affect output, service access, or the equipment combination you’ll need.
| Planning check | What to confirm |
|---|---|
| Daily capacity | Plan from 346 lb per day at 90°F air and 70°F water in warm locations. The maximum rating is 450 lb at 70°F air and 50°F water. |
| Storage | Add a compatible bin or dispenser. Storage isn’t included with this modular head. |
| Ice format | The HA1-A configuration produces half cubes measuring 3/8 × 1-1/8 × 7/8 inches. |
| Operating conditions | Maintain 35°F–110°F ambient air, 35°F–100°F incoming water, and 20–100 psi water pressure. |
| Connections | Provide 115V/60Hz/1-phase power through a junction box, a 15A minimum circuit ampacity, a 1/2-inch FNPT potable-water inlet, and a 3/4-inch FNPT water outlet. |
| Airflow and fit | Allow for cabinet dimensions of approximately 30.18 × 24.69 × 22.19 inches, plus 6 inches of clearance on the left, right, and rear. |
During normal operation, this True ice machine provides several controls and service-focused features:
- The 4.3-inch TrueTouch® display presents ice level, live system status, and diagnostic information without relying only on error codes.
- Time-of-Flight technology monitors ice level and usage without requiring a separate bin thermostat kit.
- Production scheduling helps align operation with anticipated demand.
- Visual and audible alerts bring operating conditions to the team’s attention.
- A removable air filter, tool-free removable components, one-touch cleaning controls, and gauge-free pressure transducers simplify routine access and service checks.
The TrueNcapsuL8® evaporator is fully insulated and sealed, helping inhibit mold, bacteria, and biofilm growth on the backside of the evaporator plate. TrueGuard™ antimicrobial protection is integrated into applicable molded components. These features support sanitation, but they don’t replace descaling, sanitizing, condenser care, or inspections. TrueZone® food-zone air purification is an optional accessory sold separately.
Water treatment also deserves attention before the True ice machine enters service. True recommends installing filtration and replacing the cartridge every six months, or more frequently in hard-water environments. Its current commercial ice warranty states that failures caused by the absence of a water filter or filtration system aren’t covered. Follow the model manual and match water treatment to local conditions. Our commercial ice machine cleaning guide provides general planning support, but True’s procedure controls the work.
This True ice machine is a strong fit when an operation needs half-cube ice, has demand that fits the 346 lb warm-condition rating, and can provide compatible storage and the required clearances. It isn’t a countertop or all-in-one residential appliance. Confirm the head, bin or dispenser, bin top if required, filter, utilities, and installation labor as one system before ordering.
A few final details can help confirm the fit.
- Is the TCIM-430-HA1-A a complete ice machine system?
- No. It’s a modular True ice machine head, so a compatible bin or dispenser must be purchased separately. Confirm head-to-bin compatibility, the required bin top or adapter, storage capacity, total installed height, and service access before ordering.
- How much ice does this True ice machine produce?
- It produces up to 450 lb per 24 hours at 70°F air and 50°F water. Output is 346 lb at 90°F air and 70°F water. The warmer-condition rating is the more conservative figure for sizing equipment in a busy kitchen.
- What does the TCIM-430-HA1-A require for installation?
- It requires compatible storage, 115V/60Hz/1-phase electrical service through a junction box, a 15A minimum circuit ampacity, potable water at 20–100 psi, and drainage. The air-cooled head also needs 6 inches of clearance on the left, right, and rear.
- Does this True ice machine use a lot of water and electricity?
- True rates the TCIM-430-HA1-A at 14.9 gallons of potable water and 4.27 kWh of electricity per 100 lb of ice under its stated rating condition. Actual consumption varies with production volume, incoming-water temperature, ambient heat, scale, airflow, and maintenance.
- Can I leave this True ice machine running all the time?
- Yes. It’s designed for automatic commercial operation and uses ice-level monitoring to manage production as storage conditions change. Keep the water supply, drain, and ventilation unobstructed, follow a production schedule that fits demand, and shut the unit down as directed for cleaning or service.
Certifications
UL EPH Classified
This item meets or exceeds ANSI/NSF requirements and complies with United Laboratories (UL) EPH standards.
Energy Star Qualified
The item has been evaluated by the U.S. Environmental Protection Agency and the U.S. Department of Energy and has been found to be energy efficient.
UL US & Canada
The item has been tested by Underwriters Laboratories (UL) for sanitation hazard standards and meets or exceeds expectations. The item can be used in the United States and Canada.
