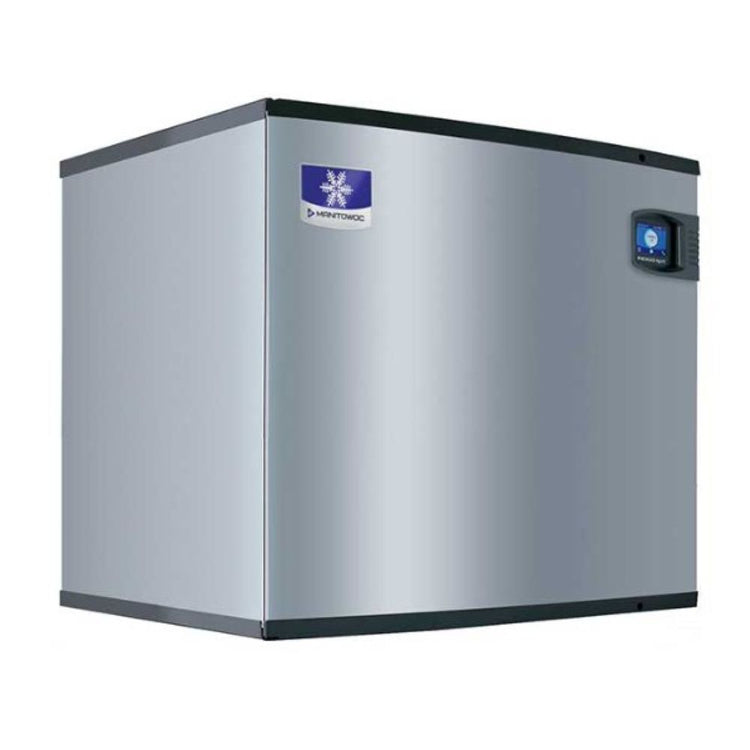

Manitowoc IDF2100C Indigo NXT QuietQube 30-Inch Wide 1800 LB Daily Ice Production Modular Remote-Cooled Dice-Cube-Style Ice Maker
| Manufacturer | Manitowoc |
|---|---|
| Model Number | IDF2100C |
| Manufacturer Part # | IDF2100C |
| Condenser Type | Air-cooled |
| Production per 24 hr | 1701 - 1800 Lb = 772 - 817 Kg |
| Refrigeration | Remote (refrigeration Not Included) |
| Width (side - side) | 30 - 39" Wide |
| Ice Type | Full Size / Dice Cubes |
| Height | 29.5" |
| Width | 30" |
| Depth | 24.5" |
| Weight | 210 lbs |
| NSF | Yes |
| CE | Yes |
| cULus | Yes |
| AHRI | Yes |
About this item
Product Details
Product Details
High-volume dice ice with less refrigeration noise at the ice-making station.
Built for operations with substantial daily demand, the Manitowoc Indigo NXT ice machine IDF2100C produces up to 1,800 pounds of dice ice per 24 hours in a 30-inch-wide head. Its QuietQube design places the compressor and condenser in a remote condensing unit, eliminating most refrigeration-system noise at the ice-making location. See current Manitowoc ice machine options and availability while planning the right system for your operation.
The IDF2100C is a modular ice-making head, not a complete standalone system. It requires a Manitowoc CVDF2100 remote condensing unit, an approved refrigerant line set, and a compatible storage bin or dispenser. A dispenser installation also requires the correct adapter. Confirm every component as one approved Manitowoc package before ordering.
Capacity needs context. The Manitowoc Indigo NXT ice machine produces up to 1,800 pounds per day at 70°F air and 50°F water, but its AHRI Standard 810 rating is 1,575 pounds at 90°F air and 70°F water. Use the warmer-condition figure, then preserve enough reserve for peak periods. The commercial ice machine sizing guide can help calculate production and storage requirements.
Review these conditions before approving the Manitowoc Indigo NXT ice machine for the project.
| Planning check | What to confirm |
|---|---|
| Electrical service | The head uses an independent 115V, 60 Hz, single-phase supply. The CVDF2100 needs a separate 208–230V supply in its specified single- or three-phase configuration. |
| Refrigerant route | Maximum line length is 100 feet, with a 35-foot maximum rise and a 15-foot maximum drop. A rise above 20 feet requires the K-00166 S-trap kit. |
| Operating limits | Keep the ice-making head within 40°F–110°F and the CVDF2100 within -20°F–130°F. Incoming water must remain within 40°F–90°F at 20–80 psi. |
| Water and drain | The ice-making water inlet uses a 3/8-inch FPT connection, and the ice-making water drain uses a 1/2-inch FPT connection. |
| Head clearance | Preserve at least 2 inches above, 8 inches at each side, and 5 inches behind the ice-making head. |
| Storage fit | Verify the current compatibility listing, bin top, and dispenser adapter before pairing the head with storage or dispensing equipment. |
Manitowoc lists 20-, 30-, and 50-foot standard line sets, but the complete route and vertical change must remain within the stated limits. Use the commercial ice maker installation checklist to coordinate the electrician, plumber, refrigeration technician, and equipment installer.
The Manitowoc Indigo NXT ice machine produces 7/8-inch by 7/8-inch by 7/8-inch dice cubes. Confirm that this full-size format works with the operation’s cups, beverage program, ice-handling process, and dispenser opening.
For day-to-day use, the Manitowoc Indigo NXT ice machine provides practical controls and service features:
- The easyTouch display shows operating status, settings, cleaning instructions, and service information.
- Production can be programmed by time or daily ice volume.
- Intelligent diagnostics provide operating and preventative-maintenance feedback.
- The acoustical ice-sensing probe and Active Sense software help manage ice formation and harvest as conditions change.
- The water trough, distribution tube, splash guard, water probe, and water pump are removable for food-zone cleaning.
- The DuraTech exterior has a clear coating designed to resist corrosion, fingerprints, and dirt.
Water quality, scale, drainage, and installation still affect performance. Check the official Manitowoc IDF2100C specification sheet and current manuals before approving utilities, accessories, or procedures.
Manitowoc recommends cleaning and sanitizing the Manitowoc Indigo NXT ice machine at six-month intervals. Water quality, scale, dust, airborne contaminants, and local requirements may call for more frequent service. Follow the IDF2100C procedure, and use only the cleaner and sanitizer specified by Manitowoc. The commercial ice machine cleaning guide can support general planning, but the manufacturer manual controls the work.
Before committing, verify demand, the complete QuietQube package, storage, line routing, utilities, and service access. Properly sized and installed, this Manitowoc Indigo NXT ice machine delivers high-volume dice ice while keeping most refrigeration-system noise away from the ice-making area. Pair it only with approved commercial ice bins or dispensing equipment.
A few details about this Manitowoc Indigo NXT ice machine are especially important.
- Is the Manitowoc IDF2100C a complete ice-making system?
- No. The IDF2100C is the ice-making head. It requires a CVDF2100 remote condensing unit, an approved refrigerant line set, and a compatible bin or dispenser. A dispenser installation also requires the correct adapter.
- How much ice does the Manitowoc IDF2100C produce?
- It produces up to 1,800 pounds per 24 hours at 70°F air and 50°F water. Its AHRI Standard 810 rating is 1,575 pounds at 90°F air and 70°F water, which is the better figure for warm-condition planning.
- Which remote condensing unit works with the IDF2100C?
- Use the Manitowoc CVDF2100. Manitowoc designs the QuietQube head and CVD condensing unit as a matched system, so the IDF2100C cannot be connected to another ice-machine or remote-condenser brand.
- Can the Manitowoc Indigo NXT ice machine stay on continuously?
- Yes. It is designed for automatic commercial operation. A properly installed storage or dispensing configuration signals the machine to stop when it detects a full condition. The easyTouch controls can also schedule off periods or limit daily production.
- How often should the Manitowoc IDF2100C be cleaned?
- Clean and sanitize it at six-month intervals. Water quality, scale, dust, airborne contaminants, and local requirements may call for more frequent service. Follow the current IDF2100C manual, and use only cleaner and sanitizer specified by Manitowoc.
Certifications
AHRI
The item has been tested by the Air Conditioning, Heating and Refrigeration Institute (AHRI) and has been found to meet or exceed manufacturer claims.
CE Listed
The item has been tested by the Conformité Européenne (CE) for sanitation hazard standards and meets or exceeds expectations.
UL US & Canada
The item has been tested by Underwriters Laboratories (UL) for sanitation hazard standards and meets or exceeds expectations. The item can be used in the United States and Canada.
NSF Listed
The item meets the standards imposed by NSF International. These standards relate to health, public safety and the environment.
