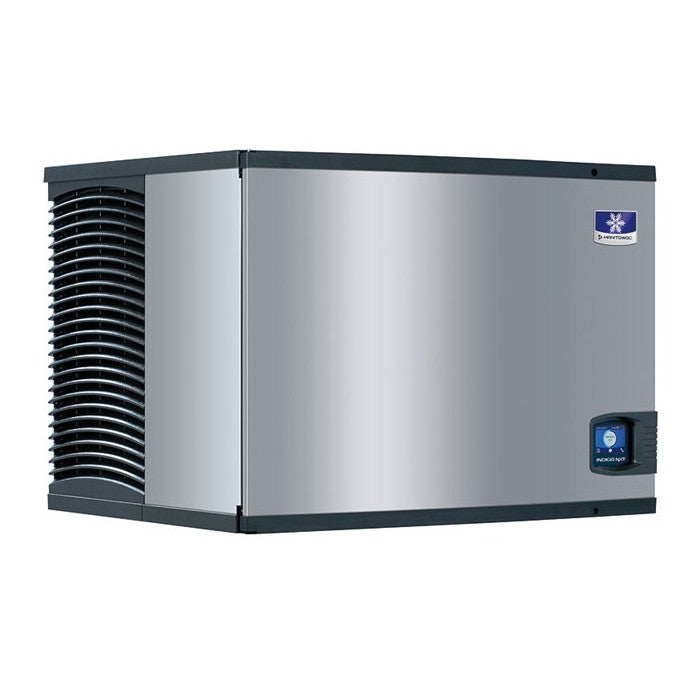

Manitowoc IYT1500W Indigo NXT™ Series Ice Maker Cube-style Water-cooled

Build a high-volume half-dice system around real peak demand.

The Manitowoc IYT1500W puts substantial ice production into a modular, water-cooled head for operations that can’t afford capacity bottlenecks. Its Manitowoc Indigo NXT controls help staff manage production schedules and monitor operating status, while the water-cooled condenser uses water as the primary heat-rejection medium, reducing the condenser heat released into the room compared with an air-cooled model.

For the standard single-phase configuration, Manitowoc rates production at up to 1,590 pounds per day at 70°F air and 50°F water, or 1,392 pounds at 90°F air and 70°F water. Use the warmer-condition figure for conservative planning. Storage isn’t included, so the approved bin or dispenser must be ordered as part of the complete system.

Size production and storage as separate decisions.

The daily production rating tells you how much ice the machine can make under stated test conditions. It doesn’t tell you how much ice will be available at one moment. The storage bin provides the working reserve between production cycles and peak demand.

The 1,392-pound warm-condition rating averages about 58 pounds per hour across a complete day, but the machine doesn’t produce at a perfectly even hourly rate. Freeze time, harvest time, water temperature, room conditions, mineral buildup, and operating settings all affect actual cycle performance.

Manitowoc depicts the iT1500 head with the Manitowoc D970 ice bin, which has a published 882-pound application capacity. The bin is sold separately. Confirm the complete head-and-bin combination, any required adapter or deflector, installed height, drain arrangement, and staff access before delivery.

Don’t size the bin only from total daily production. A smaller reserve may work when demand is spread across the day, while concentrated banquet, beverage, hotel, or production demand can require substantially more stored ice. The right system balances realistic production with the amount needed during the busiest service period.

Account for both water circuits before approving the site.

A water-cooled condenser can be useful when an air-cooled machine would add too much heat to the room or struggle with available ventilation. The tradeoff is substantial condenser-water use and a more involved plumbing installation.

The IYT1500W needs an ice-making water inlet, a separate condenser-water inlet and outlet, an ice-machine drain, and drainage for the bin or dispenser. These connections must remain distinct and be installed according to Manitowoc’s instructions and local code. Drain lines need the required slope, venting, air gaps, and service access.

Manitowoc publishes approximately 140 gallons of condenser water for every 100 pounds of ice. At high daily production, water and sewer costs can be significant. Review local water-use restrictions, utility rates, supply capacity, and discharge requirements before committing to this configuration. This water-cooled configuration isn’t ENERGY STAR qualified.

An appropriately sized Manitowoc ice-machine water filter can help address sediment, chlorine-related taste or odor, and other documented incoming-water concerns. Match filtration to the required flow and local water conditions. Standard filtration doesn’t soften hard water or eliminate the need for descaling.

Use the controls to manage production, not conceal site problems.

The Manitowoc Indigo NXT interface supports production scheduling, status monitoring, reminders, and diagnostic feedback. Those tools can help staff plan around demand and give technicians useful operating information, but they don’t correct restricted water flow, poor drainage, improper pressure, mineral buildup, utility problems, or an undersized storage system.

Programmed shutdowns can reduce production during periods when ice isn’t needed. Before using a time- or volume-based production schedule, confirm that the bin will still contain enough ice for reopening, shift changes, scheduled events, and unexpected demand.

Don’t change internal refrigeration, harvest, water-level, or ice-thickness settings to force faster production. If output drops, review the display for alerts and check operating conditions, water supplies, filtration, drainage, and maintenance history first. Internal testing and adjustments belong with a qualified service technician.

AlphaSan antimicrobial material is used on specified food-zone components, but it doesn’t sanitize the finished ice, treat incoming water, or replace scheduled cleaning. Diagnostic features and automated sequences support maintenance; they don’t make the machine self-cleaning.

Protect output with scheduled descaling and sanitizing.

Manitowoc instructs operators to descale and sanitize Indigo NXT machines at least every six months. Difficult water, heavy use, visible buildup, or local sanitation requirements can demand more frequent service. The ice machine and bin must be disassembled as directed during the detailed procedure, and ice produced during cleaning must be discarded.

Use only Manitowoc-approved ice-machine descaler and sanitizer at the specified concentrations. Don’t run vinegar, bleach, or an improvised chemical mixture through the IYT1500W unless current Manitowoc documentation expressly authorizes it for the exact procedure. Mixing chemicals or using an unsuitable concentration can damage components and create a safety hazard.

The clean control starts and manages portions of the cleaning sequence, but removable food-zone components still require the manual attention specified in the current Manitowoc Indigo NXT manual. Our commercial ice-machine cleaning guide can help with general planning, but the manufacturer’s instructions remain the controlling source.

Manitowoc’s published commercial warranty provides three years of parts-and-labor coverage for the ice machine. Compressor parts receive an additional two years, and the evaporator receives an additional two years of parts-and-labor coverage, subject to current terms, exclusions, proper installation, maintenance, and registration requirements. Manitowoc directs owners to register the machine online within five days of installation. Retain the installation and purchase records, and review the current warranty before commissioning.

Manitowoc Indigo NXT FAQs

The Manitowoc IYT1500W is a compelling fit when an operation needs high-volume half-dice production, has an approved storage plan, and can support the water and drainage demands of a water-cooled condenser. Review the official iT1500 specification sheet before finalizing the electrical version, bin, filtration, utilities, and clearances. Compare other water-cooled ice machines if the site requires another output range, footprint, cube style, or storage configuration.
