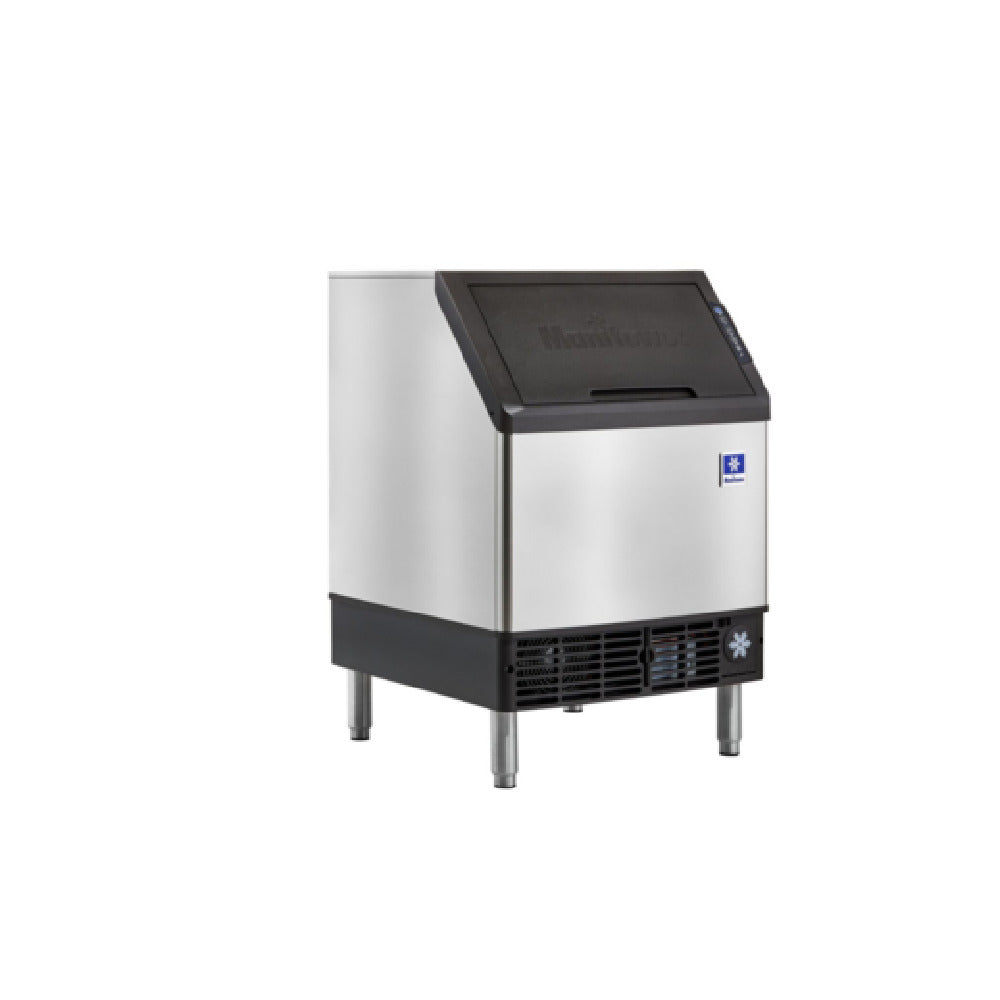

Manitowoc UDP0140A NEO® Undercounter Ice Maker Cube-style Air-cooled

Manitowoc  |  MFG #: UDP0140A  |  Item #: 553177
Item: #553177

Technical details
Manufacturer Manitowoc
Model Number UDP0140A
Manufacturer Part # UDP0140A
Cube Type Full Size/dice
Production per 24 hr 101 - 200 Lb = 46 - 90 Kg
Finish Stainless Steel
Condenser Type Air-cooled
Bin Storage Capacity 101 - 199 Lb Bin Capacity
Height 38.5"
Depth 28.5"
Weight 157 lbs
NSF Yes
CE Yes
cULus Yes
AHRI Yes

About this item

Product Details

Serve full-size dice ice from one compact cabinet with the Manitowoc UDP0140A.

The Manitowoc UDP0140A NEO undercounter ice machine combines ice production, air-cooled refrigeration, and an integrated storage bin in one unit. Order it for an indoor bar, café, or restaurant station where staff need scoop access close to drink preparation. A separate ice bin and remote condenser aren’t required.

Use the space beneath the counter

Air enters and exits at the front, supporting undercounter installation or placement alongside other equipment. Keep that front airflow path unobstructed and allow access for service.

The included adjustable legs support leveling at the installation site. Match the installed height to the actual counter opening, accounting for the support configuration and rear utility connections. Review Manitowoc’s NEO 140 specification sheet for cabinet dimensions. For enclosed cabinetry, follow the cutout requirements in Manitowoc’s installation manual and retain the ability to withdraw the machine for cleaning.

Pause production around closed hours

The touchpad provides on/off, delay, cleaning, filter, full-bin, and service information at the machine. Clearly labeled indicators identify a full bin and display service status and a filter-replacement reminder.

A production-delay function pauses ice production and can repeat daily. That gives operators a defined off period around regular closing hours. Coordinate the delay with expected demand and the ice already stored in the bin.

Retain access for routine service

The forward-sliding, removable storage bin allows access to refrigeration components for cleaning and maintenance.

The removable water trough, distribution tube, and ice damper provide access to water-contact components during cleaning. The clean function supports the cleaning cycle, while removable parts allow hands-on descaling and sanitizing.

Specify finer onboard filtration when needed

For a site requiring finer sediment filtration, specify the separately purchased Manitowoc K00531 enhanced cartridge. Manitowoc lists 0.5-micron sediment reduction for K00531 and 5-micron sediment reduction for the K00530 standard cartridge. Both fit the NEO UP onboard manifold. Add compatible replacement cartridges to the order for subsequent filter changes.

Add optional LuminIce II growth control

Specify the separately sold Manitowoc K00519 LuminIce II kit when supplemental foodzone growth control is a maintenance priority. The system circulates foodzone air over a UV bulb to inhibit common microorganism growth on exposed foodzone surfaces. This is a field-installed accessory for the machine, with installation arranged separately. It complements required descaling and sanitizing.

Manitowoc UDP0140A buying questions

Does the Manitowoc UDP0140A include an ice storage bin?

Yes. The integrated ice storage bin and self-contained, air-cooled refrigeration are included. Standard adjustable legs and a plastic NEO ice scoop are also included, so you don’t need a separate bin, scoop, or remote condenser to complete the equipment package.

What type of ice does the Manitowoc UDP0140A produce?

The UDP0140A produces full-size dice cubes. Manitowoc distinguishes these square cubes from the half-dice format supplied by the UYP0140A. Order according to the cube shape your beverage service requires.

Can the UDP0140A be installed without legs?

Manitowoc permits installation without legs when the cabinet is properly sealed to the floor. This is an alternative installation configuration. Have your installer follow the manufacturer’s floor-sealing requirements and applicable local codes.

Which replacement water filters fit the UDP0140A?

The K00530 standard cartridge and K00531 enhanced cartridge fit the onboard NEO UP manifold. They’re separately purchased replacement options. Match the cartridge to the site’s water-treatment requirements.

What connections does the UDP0140A require?

A potable cold-water supply, suitable gravity drainage, and a dedicated electrical circuit are required. Match the complete electrical suffix to the available power, and have the installer establish the water and drain routes before ordering.

Order the Manitowoc UDP0140A, and add the matched accessories that suit your water-treatment and maintenance priorities. For help completing the machine and accessory order, call 1-877-900-4423 before checkout.

Certifications

Overview
Select to learn more
AHRI logo

AHRI

CE Listed logo

CE Listed

UL US & Canada logo

UL US & Canada

NSF Listed logo

NSF Listed

Certifications

Overview
Select to learn more

Customer reviews

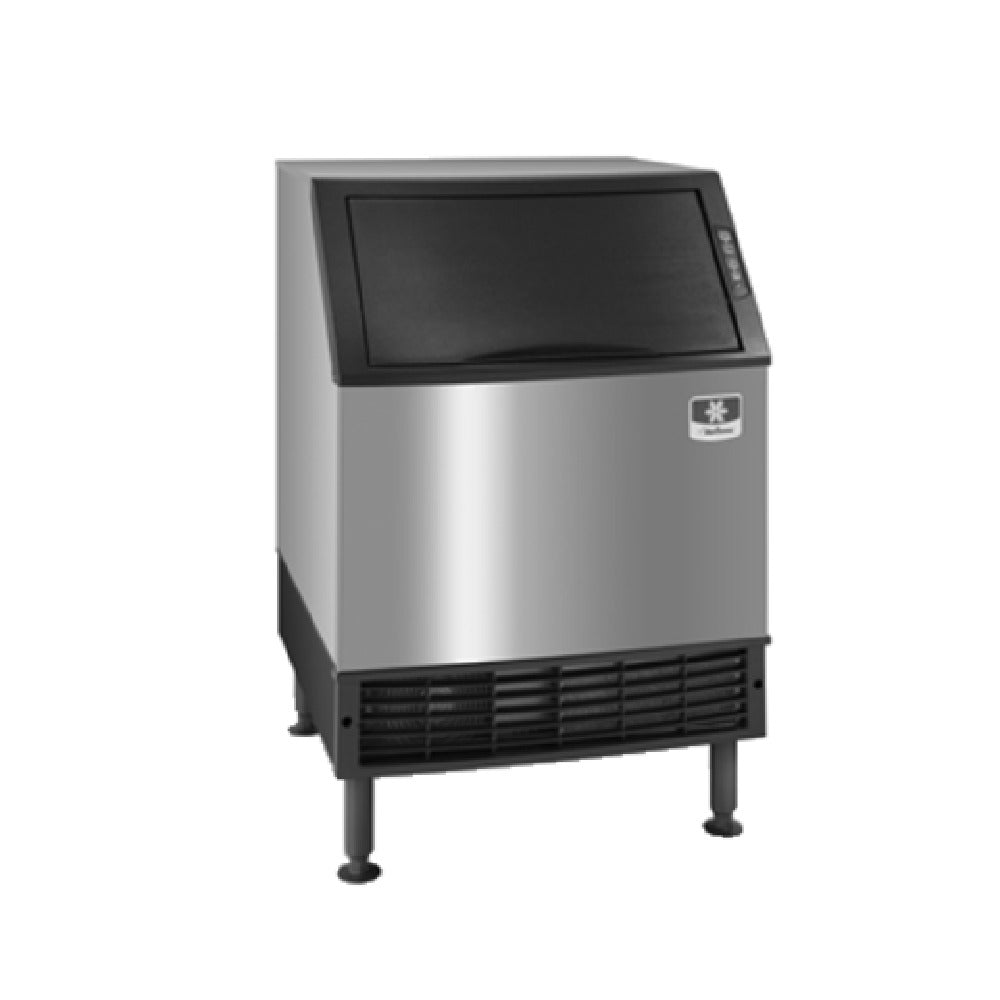

Stainless steel undercounter ice maker Manitowoc UDP0140A with black trim and adjustable legs
