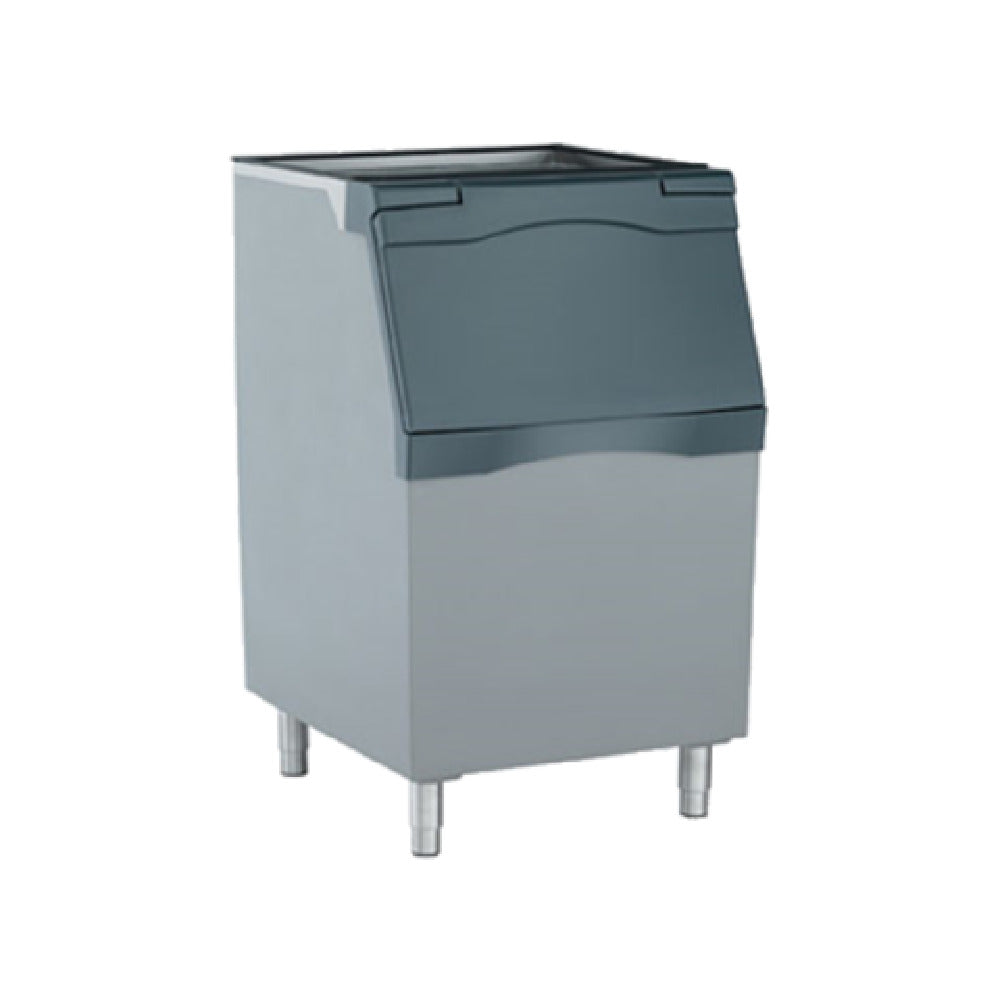

Scotsman B530P Ice Bin Top-hinged Front-opening Door 536 Lb Application Capacity

Keep more ice ready for the rush in a 30-inch-wide bin

The Scotsman B530P gives restaurants, bars, hotels, cafeterias, and other high-demand operations a substantial insulated ice reserve without requiring an extra-wide bin. Its front access, built-in scoop holder, and removable baffle make everyday use and cleaning easier. Order through IceMachinesPlus with qualifying free shipping and the 30-Day Price Match Guarantee.

The B530P stores ice but doesn’t produce it. Pair it with an approved modular ice machine and the required bin top to create a complete system.

Understand the two capacity ratings

Scotsman publishes two storage figures for the Scotsman B530P:

• 536 pounds of application capacity, calculated from 90% of the internal volume at 34 pounds of ice per cubic foot
• 420 pounds of AHRI-rated capacity, calculated from 80% of the internal volume at 30 pounds per cubic foot

These aren’t competing specifications. They reflect different standardized calculations. Actual stored weight varies with the ice type, density, shape, and how the ice settles inside the bin.

Storage capacity and ice production also measure different parts of the system. The ice machine’s 24-hour rating indicates how much ice it can make under specified conditions, while the bin rating indicates how much finished ice it can hold. A larger reserve can help crews stay ahead of a concentrated rush, but it can’t increase production or make an undersized machine recover faster.

Use the commercial ice bin guide to compare production, storage, and peak-period demand.

Confirm these points before ordering

Match the machine and bin top as one system

Install the Scotsman B530P only with a manufacturer-approved modular ice machine. The complete machine model, footprint, ice-drop opening, operating weight, and required KBT bin top all affect compatibility.

Review Scotsman’s current B530P product information and machine-and-bin sizing chart before ordering. The paired machine should also provide enough realistic output to replenish the ice removed during busy periods.

For more conservative planning, use the machine’s production rating at demanding air and water temperatures instead of relying only on its highest published output.

Plan the completed installation

Before delivery, confirm:

• The route through loading areas, doorways, hallways, elevators, and turns
• The completed system height and footprint
• Floor strength and level placement
• Space for the top-hinged door
• The required rear connection space
• Drain pitch and termination
• Machine ventilation and service clearance
• Access for baffle removal, interior cleaning, and drain inspection

The recessed drain fitting can provide more flexibility when establishing drain pitch, but it doesn’t eliminate plumbing requirements. A qualified installer should level the bin, mount the approved equipment combination, connect the drain, and complete the ice machine’s separate utility and startup requirements.

Review the commercial ice-maker installation checklist before delivery.

Use the access and cleaning features properly

The top-hinged, front-opening door gives staff access to the stored ice, while the built-in scoop holder provides a designated place to keep the scoop outside the ice supply. The internal baffle can be removed without tools, making covered surfaces easier to reach during cleaning.

The polyethylene liner supports routine cleaning, but it doesn’t sanitize itself. Keep food, bottles, cans, chemicals, glassware, and other objects out of the bin. Discard the ice whenever contamination is suspected.

Scotsman’s storage-bin cleaning guidance recommends:

• Cleaning and sanitizing the door liner, door gasket, and door frame weekly
• Cleaning the exterior monthly
• Cleaning and sanitizing the complete bin interior every six months
• Cleaning and sanitizing the bin whenever the ice machine is cleaned
• Increasing cleaning frequency when local conditions require it

Remove and discard all ice before cleaning. Follow the manufacturer-approved procedure, wear appropriate protective equipment, rinse with potable water, and use a locally approved sanitizer. Follow the chemical label for concentration, contact time, rinsing, and safety precautions.

The commercial ice-machine cleaning guide can support maintenance planning, but Scotsman’s current instructions and local sanitation requirements control the work.

Review the current warranty

Scotsman’s current commercial warranty overview places qualifying B-series bins within its three-year parts-and-labor category. Coverage remains subject to the applicable model, installation, registration, location, maintenance, service, limitations, and exclusions.

Review the current Scotsman warranty information before purchase, and complete any required registration after installation. Check the applicable warranty for coverage conditions, limitations, and exclusions.

Scotsman B530P FAQs

Does the Scotsman B530P make ice?

No. The Scotsman B530P stores ice produced by a compatible modular ice machine. The machine and any required KBT bin top are separate components.

How much ice does the Scotsman B530P hold?

Scotsman publishes 536 pounds of application capacity and 420 pounds of AHRI-rated capacity. The two figures use different volume and ice-density assumptions, and actual stored weight varies with the ice type and how it settles.

Which ice machines fit the Scotsman B530P?

Only manufacturer-approved combinations should be installed. Compatibility depends on the complete ice-machine model, footprint, ice-drop opening, operating weight, and required KBT bin top. Matching the machine and bin by width alone doesn’t confirm fit.

Why is ice melting inside my Scotsman ice bin?

Some melting is normal because the bin is insulated, not refrigerated. Excessive melting can result from frequent door opening, warm surroundings, a damaged door or gasket, an open or poorly fitted bin top, or another installation problem. The drain must remain open so meltwater can leave the bin.

How often should the Scotsman B530P be cleaned?

Clean and sanitize the door liner, gasket, and frame weekly, clean the exterior monthly, and clean and sanitize the complete interior every six months. Clean the bin whenever the ice machine is cleaned, and increase the frequency when operating conditions require it.

The Scotsman B530P is a strong fit for operations that need substantial insulated storage in a 30-inch equipment line, along with straightforward ice access and cleaning. Browse additional Scotsman ice storage bins if another capacity, footprint, or exterior finish better suits the site.

Qualifying orders receive free shipping within the 48 contiguous United States. Liftgate service, inside delivery, limited-access charges, and other added services aren’t included. For help confirming the ice machine, KBT bin top, and installation plan before ordering, call 1-877-900-4423.
