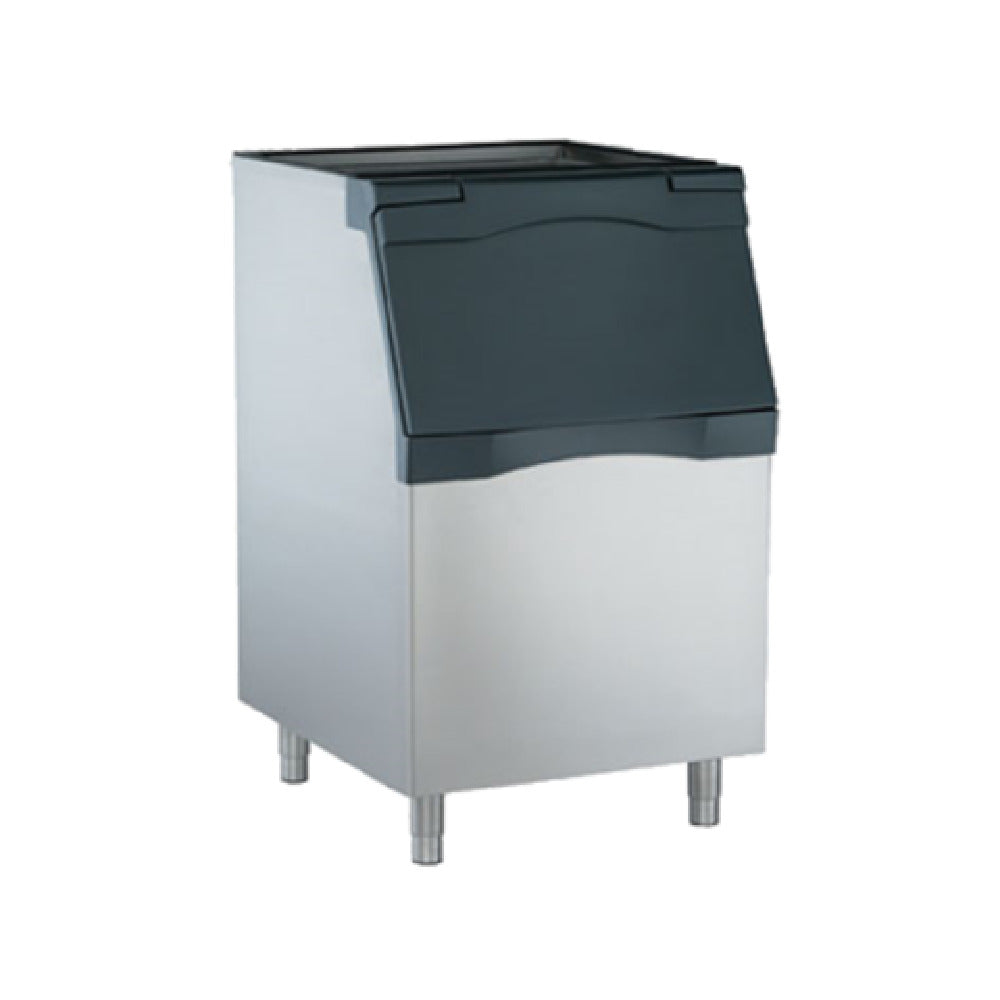

Scotsman B530S Ice Bin Top-hinged Front-opening Door 536 Lb Application Capacity

Keep more ice ready for peak service in a 30-inch equipment line.

The Scotsman B530S provides up to 536 pounds of application capacity for a compatible top-mounted modular ice maker. Its insulated construction, accessible front door, and removable baffle support operations that need substantial ice storage without moving to a wider bin. Order through IceMachinesPlus for help reviewing the head, bin, and required accessories before purchase.

The Scotsman B530S is an ice-storage bin, not an ice maker. The modular ice-machine head is sold separately. Before ordering, confirm the head model, bin-top or adapter requirements, selected legs or casters, drain location, total installed height, and delivery path.

Review these system-planning details before approving the bin for the site.

The 536-pound figure is the Scotsman B530S application capacity, calculated from usable internal volume. It isn’t the amount of ice the complete system can produce in 24 hours. Production and storage must be sized separately: the ice-machine head must replace the operation’s daily ice use, while the bin must hold enough reserve for its busiest service periods.

A larger bin can provide more rush-period inventory, but it can’t correct an undersized ice maker. Use our commercial ice machine sizing guide to compare realistic production, peak demand, and storage before selecting the complete system.

Compatibility requires more than matching widths. Before placing an ice maker on the Scotsman B530S:

• Confirm the exact ice-machine model and manufacturer-approved bin combination.
• Verify the head footprint and ice-drop opening alignment.
• Determine whether a bin top or adapter is required.
• Calculate total system height with the ice-machine head and selected base.
• Preserve the clearances required by the ice-maker installation manual.

Scotsman lists the cabinet at 44 inches high and instructs users to add six inches when bin legs are installed, producing an approximately 50-inch configuration. The KLP7 and KLP8S leg kits are listed as accessories, so confirm the selected base and exact order configuration before purchase.

The installation site must support the bin, the ice-machine head, the stored ice, and any accessories. Measure doorways, hallways, elevators, and turns along the delivery route—not just the final equipment space. The Scotsman B530S requires a suitable drain for meltwater and cleaning water, along with six inches behind the cabinet for utility connections. Our commercial ice maker installation checklist covers the complete site review.

During regular use:

• Keep the included scoop in its holder rather than buried in the ice.
• Keep bottles, cans, food, and other objects out of the bin.
• Make sure the front door closes fully after each use.
• Keep the drain clear so meltwater can leave the bin.
• Inspect the liner, baffle, door, gasket, scoop, and holder for residue.
• Remember that insulation slows heat gain but doesn’t eliminate normal meltwater.

The removable baffle provides access to areas that can otherwise collect residue, while the polyethylene liner resists scratches and scuffs from normal scoop use. Clean and sanitize all food-zone surfaces with products and procedures approved for commercial ice equipment. Our commercial ice machine cleaning guide helps with general planning, but Scotsman’s instructions and local sanitation requirements control the work.

The Scotsman B530S is a practical choice when a compatible modular head needs substantial storage within a 30-inch-wide system. If the operation needs another width or capacity, compare additional commercial ice-storage bins.

A few details about the Scotsman B530S are important before ordering.

Does the Scotsman B530S make ice?

No. It is an insulated storage bin for ice produced by a compatible top-mounted modular ice maker. The ice-machine head is purchased separately.

What does the 536 lb capacity of the Scotsman B530S mean?

It is the bin’s application storage capacity, not a daily production rating. The selected ice-machine head determines how much ice the complete system can produce in 24 hours.

Which ice machines fit the Scotsman B530S?

Compatibility depends on the ice-machine model, footprint, ice-drop opening, weight, and bin-top requirements. A 30-inch width alone doesn’t confirm fit. Verify the manufacturer-approved combination before ordering.

Are six-inch legs included?

Scotsman lists the six-inch KLP7 and KLP8S leg kits as accessories. Confirm the exact order configuration before purchase because legs, casters, bin tops, and adapters may need to be ordered separately.

How often should this ice bin be cleaned?

Scotsman recommends cleaning and sanitizing the door liner, gasket, and frame weekly; cleaning the exterior monthly; and cleaning and sanitizing the complete interior semiannually. Clean and sanitize the bin whenever the ice machine is serviced, and increase the frequency when local conditions require it.
